901-29 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN SMA JACK STR 50 OHM CRIMP
| Part | Number of Ports | Center Contact Material | Shield Termination | Mounting Feature | Cable Group | Connector Style | Housing Color | Contact Termination | Impedance | Fastening Type | Connector Type | Ingress Protection | Frequency - Max | Mounting Type | Body Finish | Center Contact Plating | Mating Cycles | Voltage Rating | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Body Material | Includes Total Count | Includes | Center Gender | Convert To (Adapter End) Gender | Convert To (Adapter End) Type | Adapter Type | Convert From (Adapter End) | Style | Conversion Type | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 1 | Beryllium Copper | Crimp | Bulkhead Front Side Nut | 142 223 400 RG-55 | SMA | Gold | Crimp Solder | 50 Ohm | Threaded | Female Socket Jack | Weatherproof | 12.4 GHz | Panel Mount | Gold | Gold | 500 cycles | 500 V | 85 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Brass | 4 pcs | Connector Contact Ferrule Heat Shrink | ||||||||

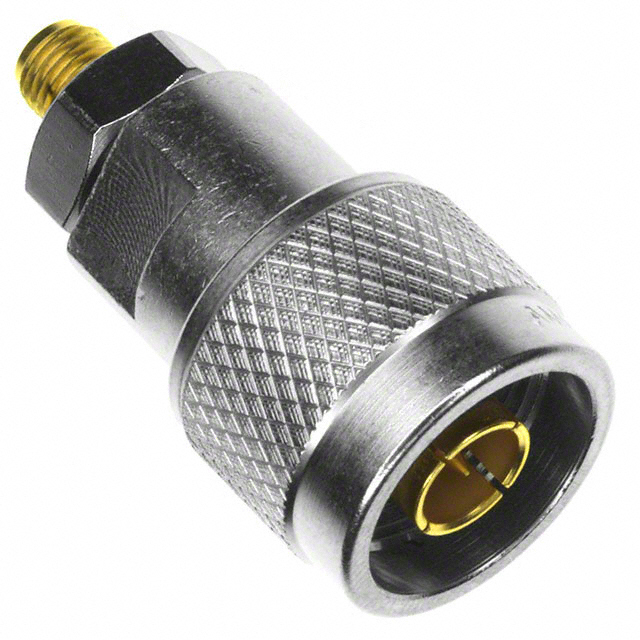

 McGill Microwave Systems | Beryllium Copper | 50 Ohm | Threaded | 12.4 GHz | Free Hanging (In-Line) | Gold | 165 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Female Male | Female Socket | SMA Jack | Plug to Jack | Male Pin N Plug | Straight | Between Series | SMA to N | |||||||||||||||
McGill Microwave Systems | Beryllium Copper | 50 Ohm | Threaded | 11 GHz | Free Hanging (In-Line) | Gold | 165 °C | -65 °C | Polytetrafluoroethylene (PTFE) | Female Male | Female Socket | N Jack | Plug to Jack | Male Pin SMA Plug | Straight | Between Series | SMA to N |
