ADG858 Series

Catalog

0.58 Ω CMOS, 1.8 V TO 5.5 V, QUAD SPDT/2:1 MUX IN MINI LFCSP

Part	Number of Circuits	-3db Bandwidth	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply, Single (V+) (Minimum)	Voltage - Supply, Single (V+) (Maximum)	Charge Injection	On-State Resistance (Max)	Current - Leakage (Typical)	Switch Circuit Type	Package / Case	Mounting Type	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Multiplexer Inputs	Demultiplexer Outputs	Package Name	Package Width	Package Length	Crosstalk	Channel-to-Channel Matching (ΔRon)	Switch Time Ton (Max)	Switch Time Toff (Max)

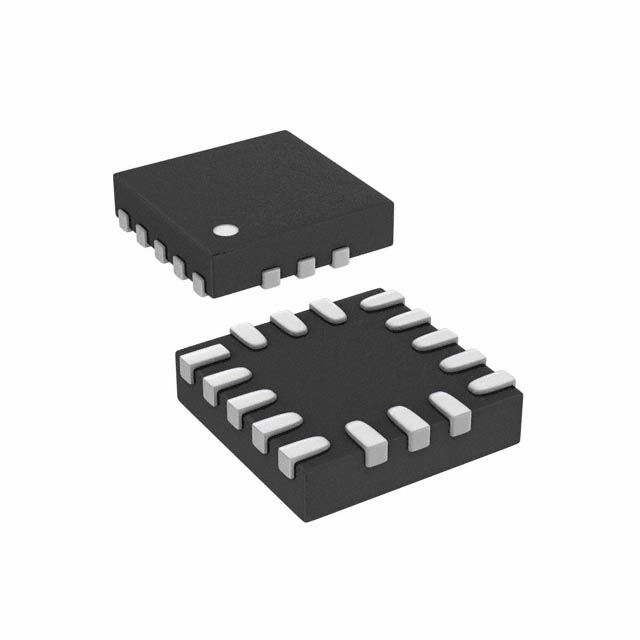

Analog Devices Inc./Maxim Integrated ADG858BCPZ-REEL7	2	70 MHz	85 °C	-40 °C	1.8 V	5.5 V	45 pC	720 mOhm	10 pA	SPDT	16-UFQFN CSP	Surface Mount	25 pF	25 pF	2	2	16-LFCSP-UQ	2.1 mm	2.1 mm	-85 dB	40 mOhm	27 ns	12 ns
Analog Devices Inc./Maxim Integrated ADG858BCPZ-REEL	2	70 MHz	85 °C	-40 °C	1.8 V	5.5 V	45 pC	720 mOhm	10 pA	SPDT	16-UFQFN CSP	Surface Mount	25 pF	25 pF	2	2	16-LFCSP-UQ	2.1 mm	2.1 mm	-85 dB	40 mOhm	27 ns	12 ns
