034-10 Series

Catalog

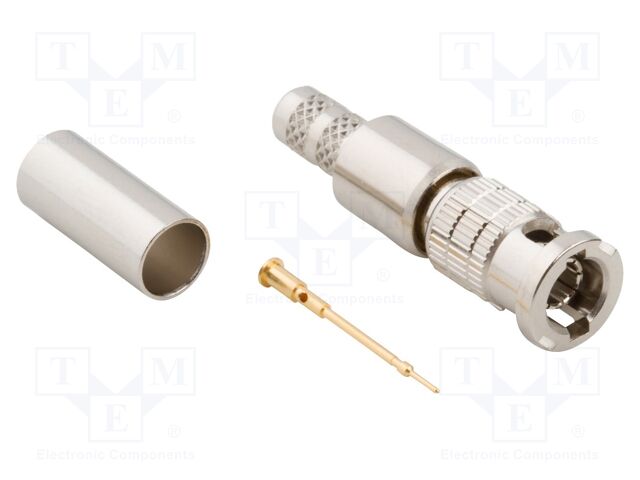

CONN HDBNC PLUG STR 75 OHM CRIMP

Part	Cable Group	Fastening Type	Shield Termination	Connector Style	Frequency - Max	Number of Ports	Housing Color	Contact Termination	Mounting Type	Center Contact Material	Impedance	Connector Type	Body Finish	Center Contact Plating	Body Material	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Dielectric Material	Voltage Rating	Mounting Feature
McGill Microwave Systems 034-1033	Times Fiber 210	Bayonet Lock	Crimp	BNC HD	3 GHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1025-12G	734A AT&T 734 Belden 1505A	Bayonet Lock	Crimp	BNC HD	18 GHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1017-300	1694A 9248 Belden 1694	Bayonet Lock	Crimp	BNC HD	3 GHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1055	735A AT&T 735 Belden 735A1	Bayonet Lock	Crimp	BNC HD	6000 MHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1021		Bayonet Lock	Solder	BNC HD	4.5 GHz	1	Gold	Solder	Through Hole	Beryllium Copper	75 Ohm	Female Socket Recepture	Gold	Gold	Brass	500 cycles	-65 °C	165 °C			Polytetrafluoroethylene (PTFE)	335 V
McGill Microwave Systems 034-1046	180 180A 180B 1865A 195 Belden 1855 RG-122	Bayonet Lock	Crimp	BNC HD	4 GHz	1	Silver	Crimp	Panel Mount	Phosphor Bronze	75 Ohm	Female Socket Jack	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	2 pcs	Connector Nut	Polytetrafluoroethylene (PTFE)		Bulkhead Front Side Nut
McGill Microwave Systems 034-1030		Bayonet Lock	Solder	BNC HD	4.5 GHz	1	Gold Silver	Solder	Panel Mount Right Angle Through Hole	Beryllium Copper	75 Ohm	Female Socket Jack	Gold Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	2 pcs	Connector Nut	Polytetrafluoroethylene (PTFE)		Bulkhead Front Side Nut
McGill Microwave Systems 034-1026-12G	180 180A 180B 1865A 195 Belden 1855 RG-122	Bayonet Lock	Crimp	BNC HD	18 GHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1037	180 180A 180B 1865A 195 Belden 1855 RG-122	Bayonet Lock	Crimp	BNC HD	4 GHz	1	Silver	Crimp	Free Hanging (In-Line)	Phosphor Bronze	75 Ohm	Male Pin Plug	Nickel	Gold	Brass	500 cycles	-65 °C	165 °C	3 pcs	Connector Contact Ferrule	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 034-1065-12G		Bayonet Lock	Solder	BNC HD	18 GHz	1	Gold	Solder	Through Hole	Beryllium Copper	75 Ohm	Female Socket Jack	Gold	Gold	Brass	500 cycles	-65 °C	165 °C			Polytetrafluoroethylene (PTFE)
