UTG02 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 9POS PNL MT

Part	Housing Color	Insert Material	Material Flammability Rating	Contact Type	Position Types	Number of Positions	Shielding	Connector Type	Orientation	Mounting Type	Type	Note	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Shell Material	Contact Shape	Contact Size	Shell Size - Insert Length	Shell Size - Insert Width	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection IP Rating	Ingress Protection Description

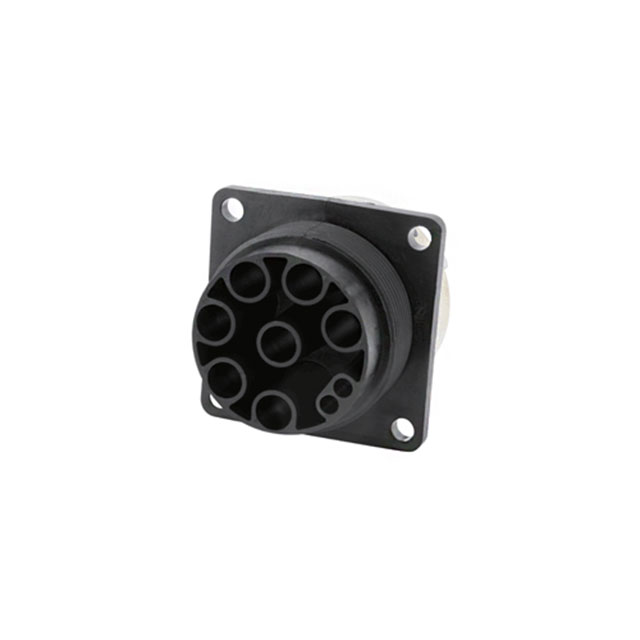

Amphenol Aerospace Operations UTG0247S	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp	PE	9	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Female Sockets	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	8 16	24 mm	7 mm
Amphenol Aerospace Operations UTG020-28S	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		28	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Female Sockets	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			28	20
Amphenol Aerospace Operations UTG020-28P	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		28	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Male Pins	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			28	20
Amphenol Aerospace Operations UTG02448SH	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		48	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Female Sockets	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			48	24	IP65	Dust Tight Water Resistant

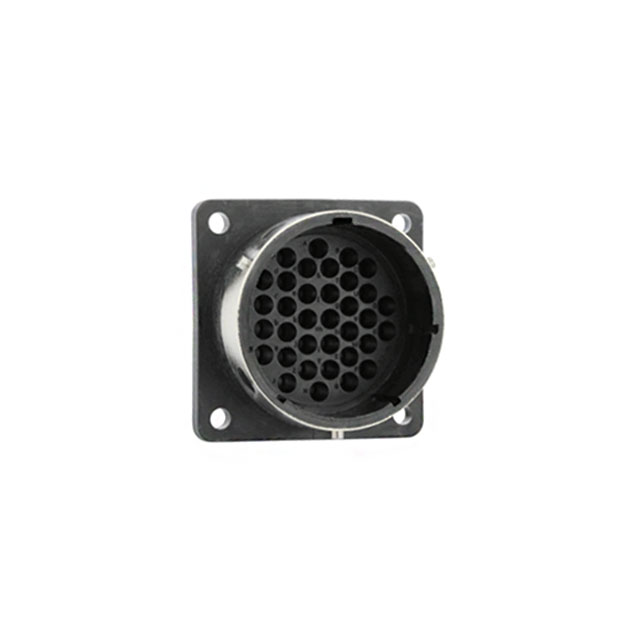

Amphenol Aerospace Operations UTG022-35P	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		35	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Male Pins	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			35	22

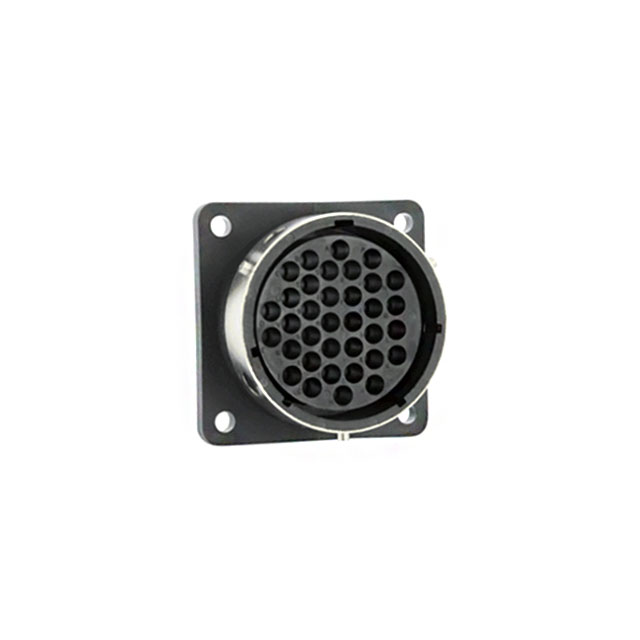

Amphenol Aerospace Operations UTG022-35S	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		35	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Female Sockets	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			35	22
Amphenol Aerospace Operations UTG02028PH	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		28	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Male Pins	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			28	20	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTG02020SH	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp	PE	20	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Female Sockets	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			20	20	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTG02448P	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		48	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Male Pins	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	16 S			48	24
Amphenol Aerospace Operations UTG02411P	Black Silver	Glass Filled Thermoplastic	UL94 V-0	Crimp		11	Unshielded	Receptacle Housing	N (Normal)	Panel Mount	For Male Pins	Contacts Not Included	Flange	125 °C	-55 °C	Bayonet Lock	Glass Filled Polyester	Circular	8 16	24 mm	11 mm
