V723 Series

Catalog

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 8A; 300V

Part	Mounting Type	Header Orientation Angle	Header Orientation	Number of Positions	Type	Positions Per Level	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Mating Finish	Color	Number of Levels	Pitch	Voltage - UL	Current - UL	Contact Tail Length	Material Flammability Rating	Contact Material	Housing Material	Insulation Height
McGill Microwave Systems V72332510000G	Through Hole	90 °	Right Angle	23	Female Sockets Header	23	Solder	-40 °C	115 °C	Mating Flange	Tin	Green	1	0.15 in	300 V	8 A	0.134 in	UL94 V-0	Phosphor Bronze	Thermoplastic	0.268 in

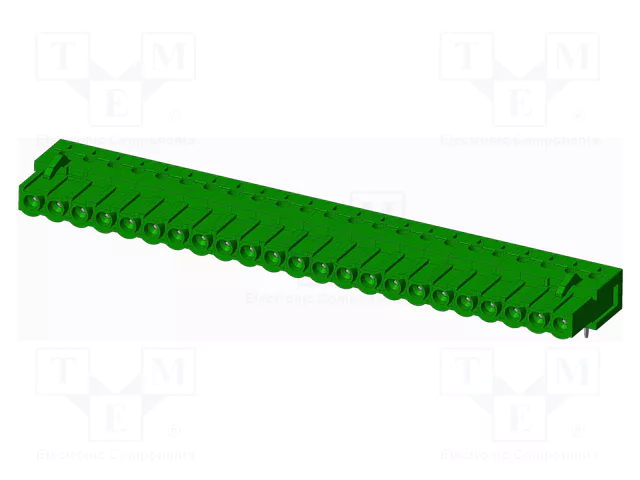

McGill Microwave Systems V72351510000G	Through Hole	90 °	Right Angle	23	Female Sockets Header	23	Solder	-40 °C	115 °C	Retention Latches	Tin	Green	1	5.08 mm	300 V	20 A	0.138 in	UL94 V-0	Copper	Thermoplastic

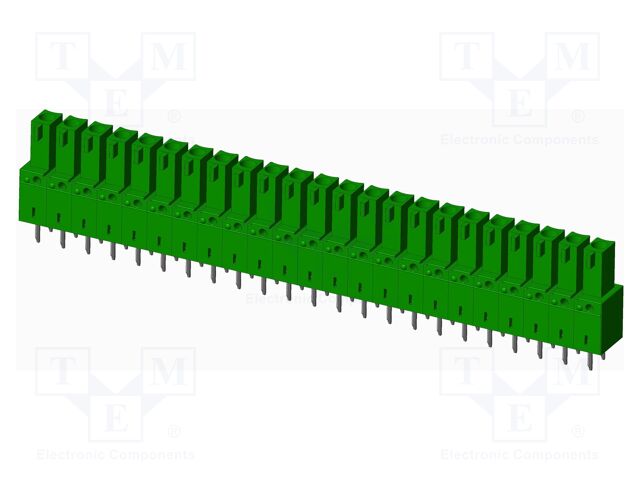

McGill Microwave Systems V72331500000G	Through Hole		Vertical	23	Female Sockets Header	23	Solder	-40 °C	115 °C		Tin	Green	1	0.15 in	300 V	8 A	0.134 in	UL94 V-0	Phosphor Bronze	Thermoplastic	0.571 in
McGill Microwave Systems V72312510000G	Through Hole	90 °	Right Angle	23	Female Sockets Header	23	Solder	-40 °C	115 °C	Mating Flange	Tin	Green	1	0.138 in	300 V	4 A	0.134 in	UL94 V-0	Phosphor Bronze	Thermoplastic	0.268 in

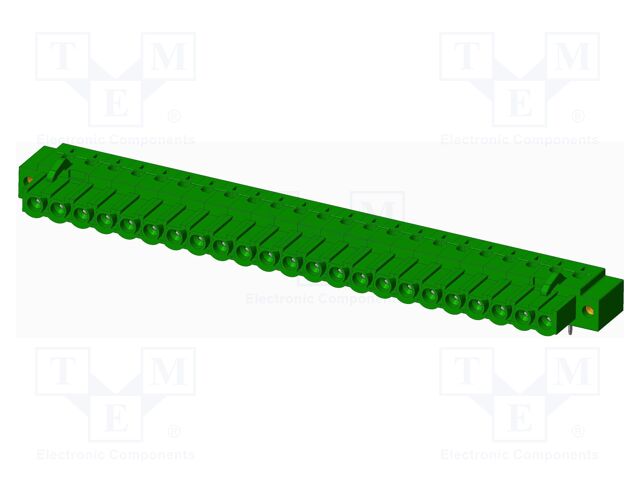

McGill Microwave Systems V72352510000G	Through Hole	90 °	Right Angle	23	Female Sockets Header	23	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Tin	Green	1	5.08 mm	300 V	20 A	0.138 in	UL94 V-0	Copper	Thermoplastic

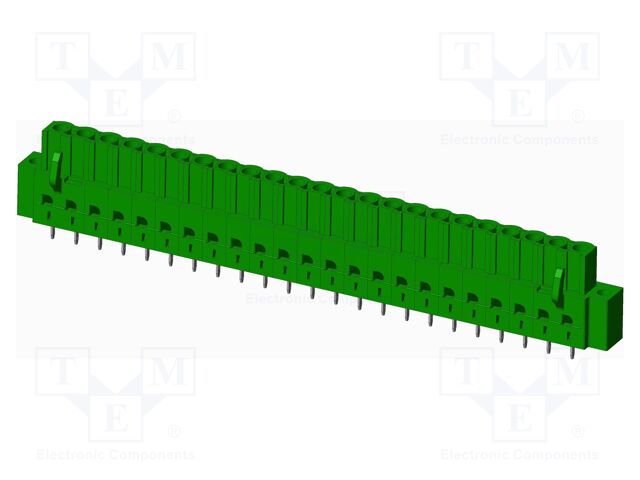

McGill Microwave Systems V72352500000G	Through Hole		Vertical	23	Female Sockets Header	23	Solder	-40 °C	115 °C	Mating Flange Retention Latches	Tin	Green	1	5.08 mm	300 V	20 A	0.138 in	UL94 V-0	Copper	Thermoplastic	0.748 in
