3109 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

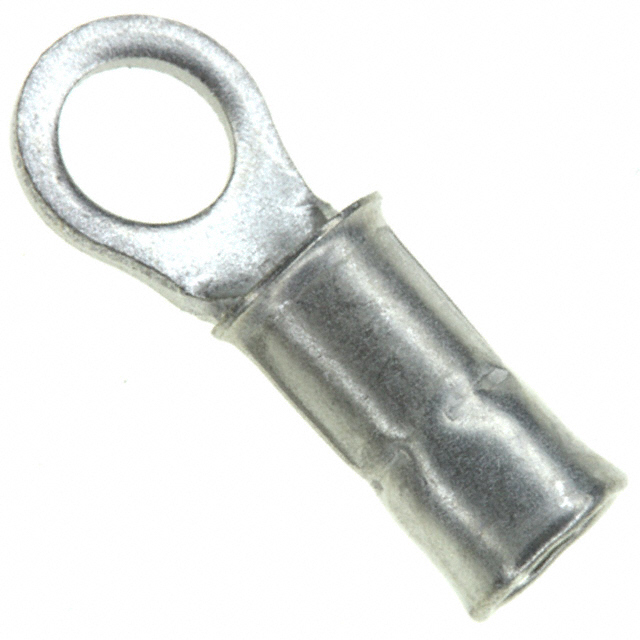

CONN RING CIRC 16-22AWG #6 CRIMP
| Part | Insulation Diameter (Min) | Insulation Diameter (Max) | Length - Overall | Insulation | Thickness | Stud/Tab Size | Contact Finish | Terminal Type | Features | Width - Outer Edges | Termination | Mounting Type | Contact Material | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.08 in | 0.125 in | 0.603 in | Non-Insulated | 0.031 in | 6 Stud | Tin | Circular | Serrated Termination | 0.218 in | Crimp | Free Hanging (In-Line) | Copper | 16 AWG | 22 AWG |
