MPC5121 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

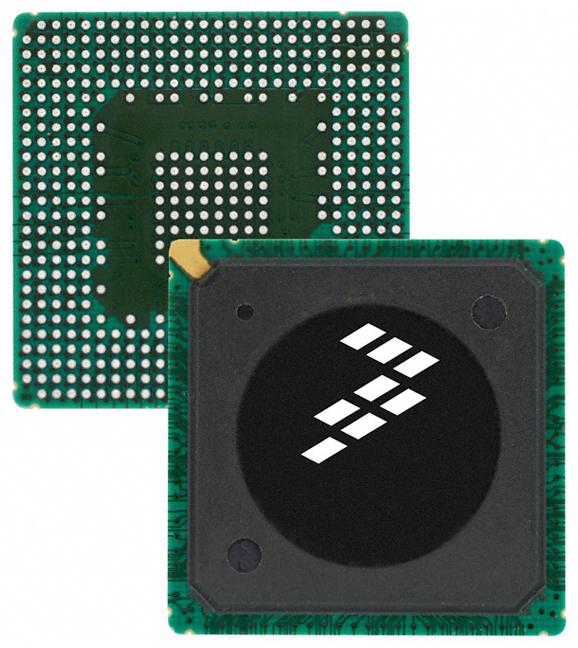

MICROPROCESSOR POWER ARCHITECTURE MPC51 SERIES 32BIT, 400MHZ, CAN, I2C, SPI, USB, 1.4V, TEPBGA-516
| Part | Core Size (Bit Width) | Core Configuration | RAM Size Width | RAM Size Depth | Package / Case | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Package Width | Package Name | Package Length | Core Processor | Voltage - Supply (Vcc/Vdd) Maximum | Voltage - Supply (Vcc/Vdd) Minimum | Peripherals | Speed | Program Memory Type | Oscillator Type | Number of I/O | Connectivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 32 Bit | Single-Core | 8 bit | 128 K | 516-BBGA | Surface Mount | 85 °C | -40 °C | 27 mm | 516-PBGA | 27 mm | e300 | 3.6 V | 1.08 V | DMA WDT | 400 MHz | ROMless | External | 147 | CANbus EBI EMI Ethernet I2C USB OTG |
 NXP USA Inc. | 32 Bit | Single-Core | 8 bit | 128 K | 516-BBGA Exposed Pad | Surface Mount | 70 °C | 0 °C | 27 mm | 516-TEPBGA | 27 mm | e300 | 1.47 V | 1.08 V | DMA WDT | 400 MHz | ROMless | External | 147 | CANbus EBI EMI Ethernet I2C USB OTG |
