JBXEP0G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 2P GOLD SLDR CUP

Part	Shell Material	Shell Finish	Mounting Feature	Number of Positions	Primary Material	Insert Material	Material Flammability Rating	Fastening Type	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Voltage Rating	Contact Finish Thickness - Mating	Connector Type	Orientation	Mounting Type	Applications	Ingress Protection	Current Rating	Shielding	Color
Amphenol Aerospace Operations JBXEP0G02MSSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	2	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder Cup	660 V	19.7 µin	Male Pins Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	10 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G02FCSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	2	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Crimp	660 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	10 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G04FQSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	4	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder	660 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount Right Angle Through Hole	Industrial Instrumentation Medical Telecommunications	IP40	7 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G03FPSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	3	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder	600 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount Through Hole	Industrial Instrumentation Medical Telecommunications	IP40	8 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G02FQSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	2	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder	660 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount Right Angle Through Hole	Industrial Instrumentation Medical Telecommunications	IP40	10 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G02FPSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	2	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder	660 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount Through Hole	Industrial Instrumentation Medical Telecommunications	IP40	10 A	Shielded	Silver

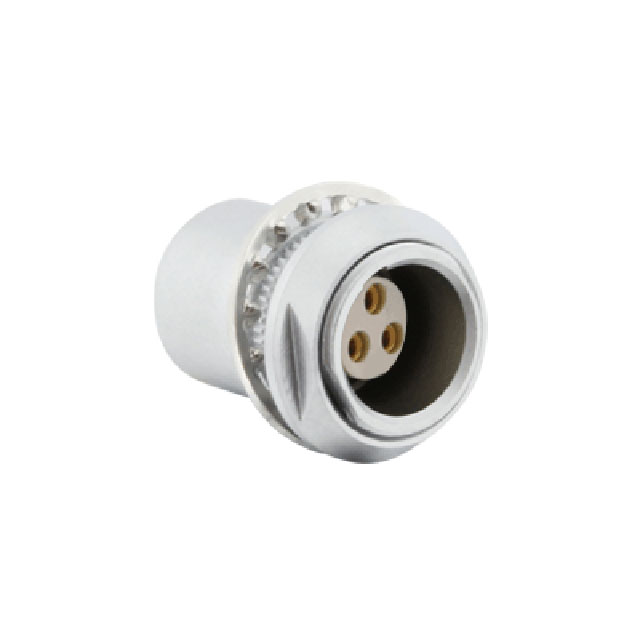

Amphenol Aerospace Operations JBXEP0G03FCSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	3	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Crimp	600 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	8 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G05FCSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	5	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Crimp	400 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	6.5 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G06FSSDP	Brass	Chrome Nickel	Bulkhead Front Side Nut	6	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder Cup	320 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	2.5 A	Shielded	Silver
Amphenol Aerospace Operations JBXEP0G03FSSDS	Brass	Chrome Nickel	Bulkhead Front Side Nut	3	Metal	PEEK Polyetheretherketone	UL94 V-0	Push-Pull	Gold	125 °C	-40 °C	Solder Cup	600 V	19.7 µin	Female Sockets Receptacle	G	Panel Mount	Industrial Instrumentation Medical Telecommunications	IP40	8 A	Shielded	Silver
