531 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF ADAPTERS - BETWEEN SERIES G PLUG TO F JACK ADAPTER
| Part | Body Material | Dielectric Material | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Material | Body Finish | Conversion Type | Convert From (Adapter End) | Adapter Series | Adapter Type | Fastening Type | Style | Center Contact Plating | Center Gender | Mounting Feature | Impedance | Mounting Type | Convert To (Adapter End) | Frequency - Max | Convert To (Adapter End) Type | Convert To (Adapter End) Gender | Mating Cycles | Shield Termination | Connector Type | Housing Color | Connector Style | Contact Termination | Number of Ports | Insertion Loss | Ingress Protection Description | Ingress Protection IP Rating | Includes Total Count | Includes | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Phosphor Bronze | Tin-Lead | Between Series | F Jack Female Socket | F to G | Plug to Jack | Snap-On Threaded | Straight | Tin-Lead | Female Male | Bulkhead | 75 Ohm | Panel Mount | G Plug Male Pin | 1 GHz | ||||||||||||||||
 McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 85 °C | Beryllium Copper | Tin | Same Series | F Jack Female Socket | F to F | Jack to Jack | Threaded | Straight | Tin | Female | Bulkhead | 75 Ohm | Panel Mount | 1.2 GHz | F Jack | Female Socket | 200 cycles | ||||||||||||||
McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 105 °C | Beryllium Copper | Tin | Same Series | Female Socket G Jack | G to G | Jack to Jack | Snap-On | Straight | Tin | Female | Bulkhead | 75 Ohm | Panel Mount | 1 GHz | G Jack | Female Socket | 150 cycles | ||||||||||||||
McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 60 °C | Phosphor Bronze | Tin | Threaded | Tin | 75 Ohm | Board Edge End Launch | 3 GHz | 500 cycles | Solder | Female Socket Recepture | Silver | F Type | Solder | 1 | |||||||||||||||||

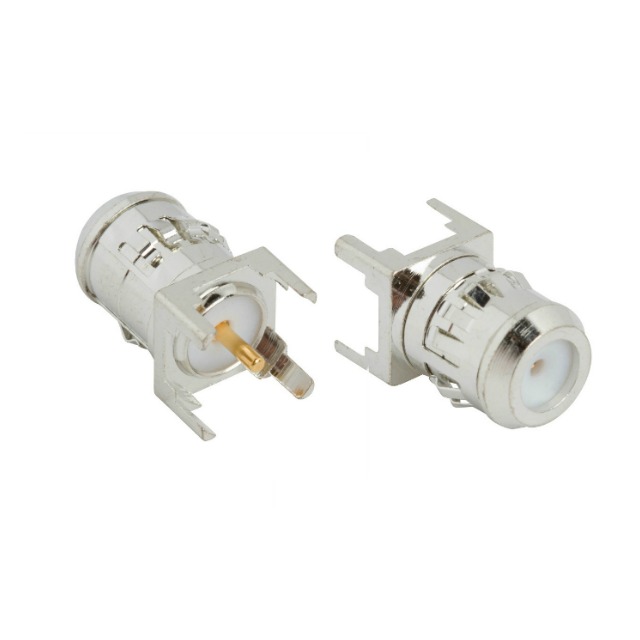

 McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 105 °C | Beryllium Copper | Tin | Snap-On | Gold | 75 Ohm | Through Hole | 1 GHz | 150 cycles | Solder | Female Socket Jack | Silver | G Type | Solder | 1 | 0.1 dB | ||||||||||||||||
 McGill Microwave Systems | Zinc Die Cast | Polytetrafluoroethylene (PTFE) | -65 °C | 165 °C | Phosphor Bronze | Tin | Threaded | Tin | Bulkhead Front Side Nut | 75 Ohm | Panel Mount Right Angle Through Hole | 2.15 GHz | 100 cycles | Solder | Female Socket Jack | Silver | F Type | Solder | 1 | Dust Tight Waterproof | IP67 | 3 pcs | Connector Lockwasher Nut | ||||||||||||
 McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 60 °C | Brass | Nickel | Threaded | Tin | 75 Ohm | Free Hanging (In-Line) | 1 GHz 3 GHz | Crimp | Male Pin Plug | Silver | F Type | Crimp Solder | 1 | 3 pcs | Connector Contact Ferrule | 179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179 | |||||||||||||||
 McGill Microwave Systems | Brass | Polytetrafluoroethylene (PTFE) | -40 °C | 105 °C | Beryllium Copper | Tin | Threaded | Tin | Bulkhead Front Side Nut | 75 Ohm | Panel Mount Right Angle Through Hole | 3 GHz | 150 cycles | Solder | Female Socket Jack | Silver | F Type | Solder | 1 | ||||||||||||||||
McGill Microwave Systems | Zinc Die Cast | Polytetrafluoroethylene (PTFE) | -40 °C | 60 °C | Beryllium Copper | Tin | Threaded | Tin | Bulkhead Front Side Nut | 75 Ohm | Board Edge Cutout Panel Mount | 1 GHz | 500 cycles | Solder | Female Socket Recepture | Silver | F Type | Solder | 1 | 3 pcs | Connector Lockwasher Nut | Board Guide | |||||||||||||
McGill Microwave Systems | Brass | Polypropylene (PP) | -40 °C | 85 °C | Copper Alloy | Nickel | Same Series | F Jack Female Socket | F to F | Plug to Jack | Threaded | Straight | Nickel | Female Male | 75 Ohm | Free Hanging (In-Line) | F Plug Male Pin | 1 GHz |
