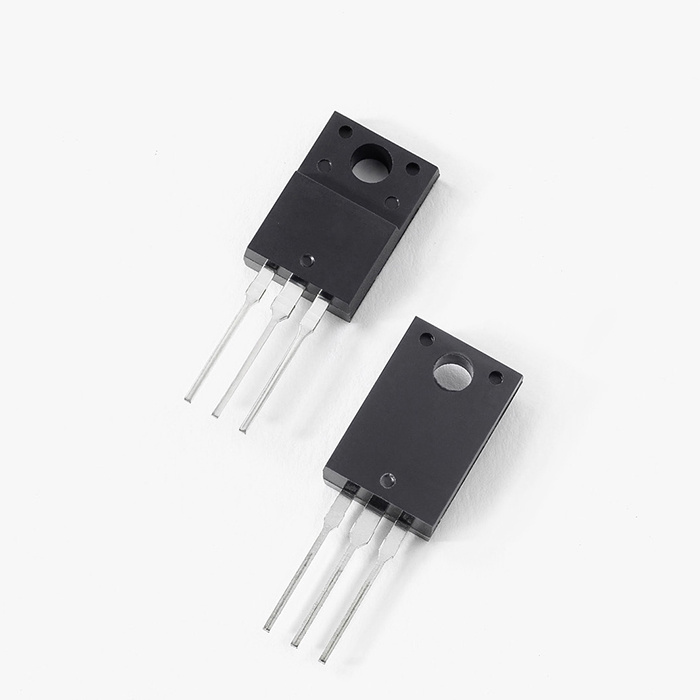

DURF2040CT Series

400V 20A Ultrafast Rectifier DUR series

Catalog

400V 20A Ultrafast Rectifier DUR series

Part	Package / Case	Current - Average Rectified (Io) (per Diode)	Technology	Diode Pair Count	Diode Configuration	Voltage - DC Reverse (Vr) (Max)	Reverse Recovery Time (trr)	Package Name	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Reverse Leakage	Mounting Type	Voltage - Forward (Vf) (Max)
LITTELFUSE DURF2040CT	Isolated Tab TO-220-3 Full Pack	10 A	Standard	1 pair	Common Cathode	400 V	45 ns	ITO-220AB	500 ns	200 mA	150 °C	-55 °C	10 µA	Through Hole	1.3 V

Catalog

400V 20A Ultrafast Rectifier DUR series

Description

Littelfuse DURF2040CT series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
