320882 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

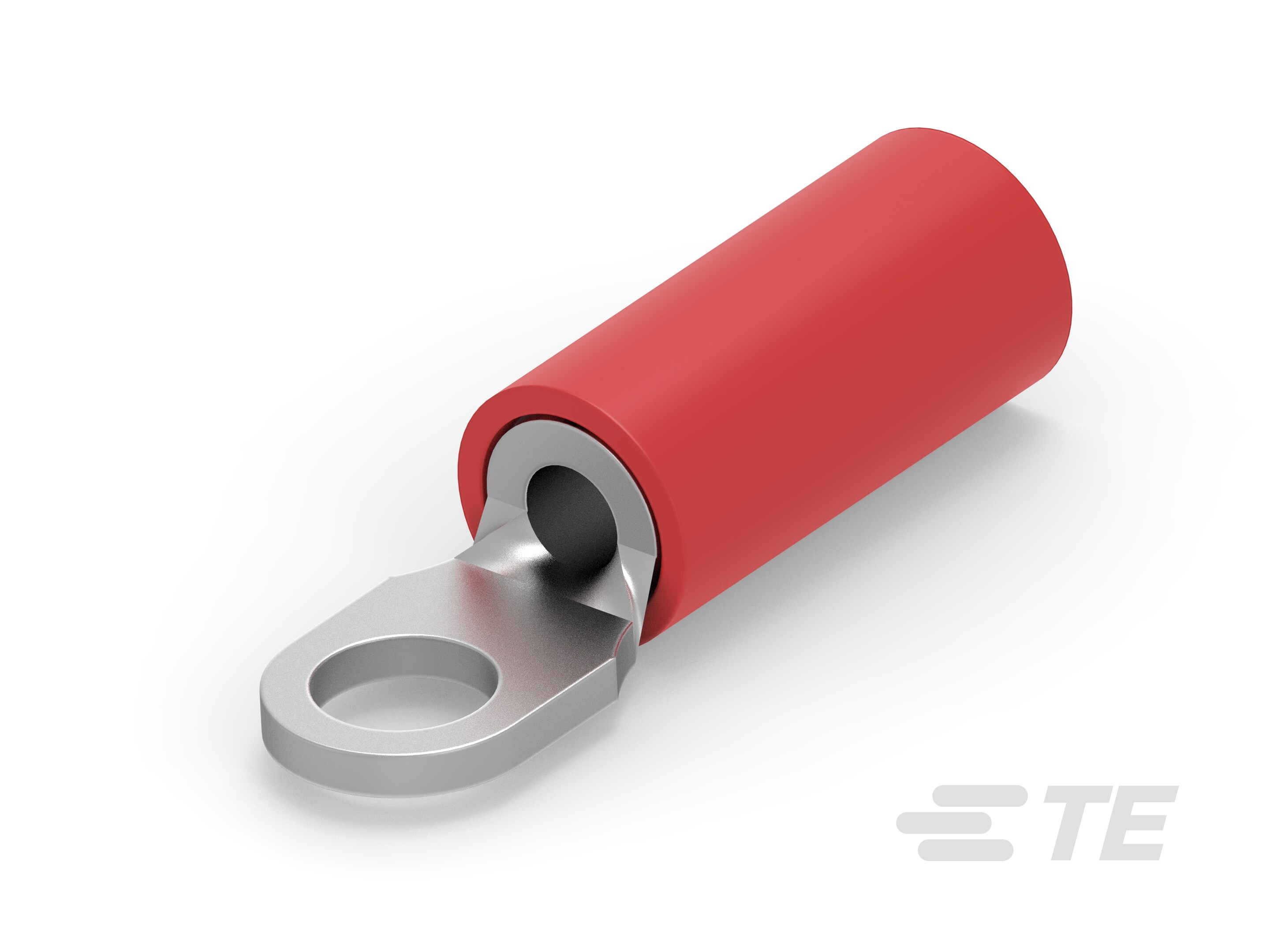

CONN RING CIRC 16-22AWG #4 CRIMP
| Part | Features | Color | Thickness | Stud/Tab Size | Width - Outer Edges | Contact Material | Terminal Type | Contact Finish | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Termination | Insulation | Length - Overall | Mounting Type | Insulation Diameter (Min) | Insulation Diameter (Max) | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Serrated Termination | Red | 0.031 in | 4 Stud | 0.182 in | Copper | Circular | Tin | 16 AWG | 22 AWG | Crimp | Insulated | 0.669 in | Free Hanging (In-Line) | 0.105 in | 0.14 in | Nylon PA Polyamide |
