FHM Series

HOLDER - MINI INLINE, RED WIRE

Catalog

HOLDER - MINI INLINE, RED WIRE

Part	Current Rating	Number of Circuits	Orientation	Fuseholder Type	Fuse Type	Mounting Type	Termination Style	For Use With/Related Products	Voltage	Fuse Length	Fuse Width
LITTELFUSE 0FHM0003ZXJP	30 A	1	Vertical	Holder	Blade	Free Hanging (In-Line)	Wire Leads	MINI®	58 V	0.63 in	0.394 in
LITTELFUSE 0FHM0001ZXJ-RED	20 A	1		Holder	Blade	Free Hanging (In-Line)	Wire Leads	Miniature (ATM)	32 VDC	0.433 in	0.152 in

Catalog

HOLDER - MINI INLINE, RED WIRE

Description

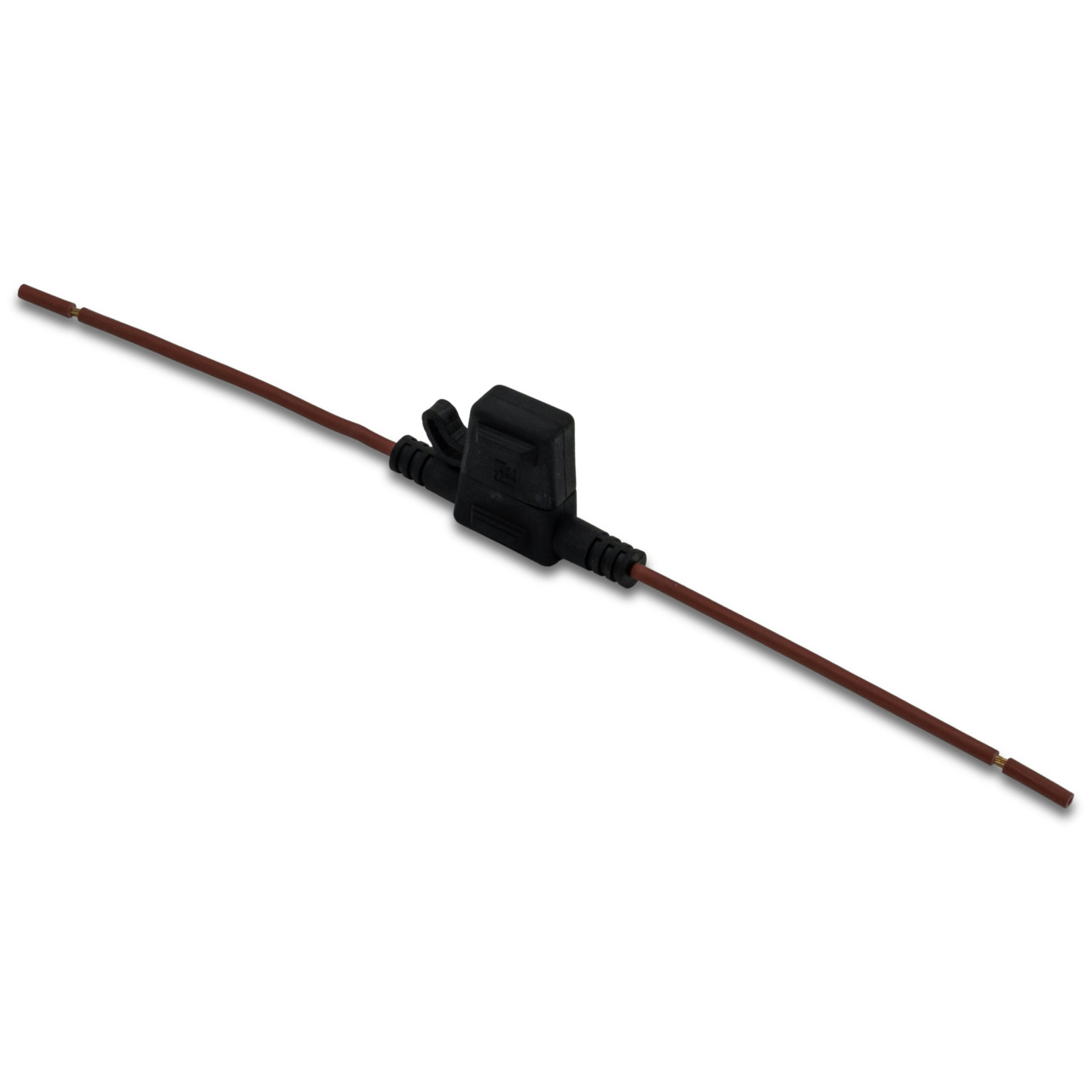

The MINI® FHM 58V Standard-Duty In-Line Waterproof Blade Fuse Holder is ideal for adding accessory and remote circuit protection in automotive and marine applications. It features an integrated cover, which connects with the fuse holder body to form a sealed enclosure that meets IP67 dustproof and waterproof standards. This configuration of the MINI® FHM Series fuse holder (0FHM0001ZXJ-RED) features a black TPV body and cover, plus 14 AWG GXL wire leads with red insulation. The lead wires are 3.7" (94mm) long and have 0.51" (13mm) end strips.
