C091 A Series

Catalog

CIRCULAR DIN CONNECTORS REAR MOU M RECPTL 8C

Part	Type	Shell Size - Insert	Shielding	Connector Type	Material Flammability Rating	Mounting Type	Housing Color	Shell Material	Contact Type	Orientation	Ingress Protection	Contact Size	Fastening Type	Mounting Feature	Number of Positions	Shell Finish	Insert Material	Current Rating	Voltage Rating	Applications	Cable Opening (Min)	Cable Opening (Max)	Color	Features	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Contact Finish - Mating	Contact Shape	Note	Includes Total Count	Includes
McGill Microwave Systems T 3506 550	For Male Pins	M16-8	Shielded	Receptacle Housing	UL94 V-0	Panel Mount	Silver	Die Cast	Crimp	Keyed	IP40	1.5 mm	Threaded	Bulkhead Rear Side Nut	8	Nickel

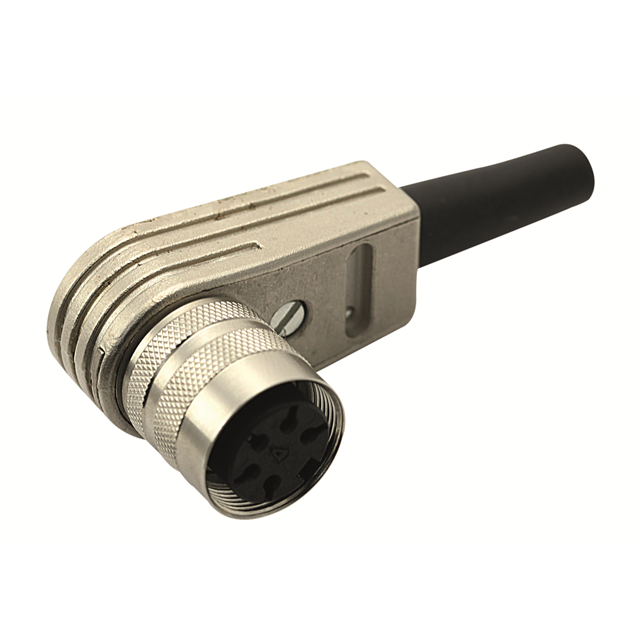

McGill Microwave Systems T 3476 058		M16-7	Shielded	Female Sockets Plug	UL94 V-0	Free Hanging (In-Line) Right Angle		Zinc Die Cast		Keyed	IP40		Threaded		7	Nickel	Thermoplastic	7 A	250 V	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	0.157 in	0.236 in	Silver	Backshell Cable Clamp Coupling Nut Strain Relief	Solder Cup	100 °C	-40 °C	Metal	Gold

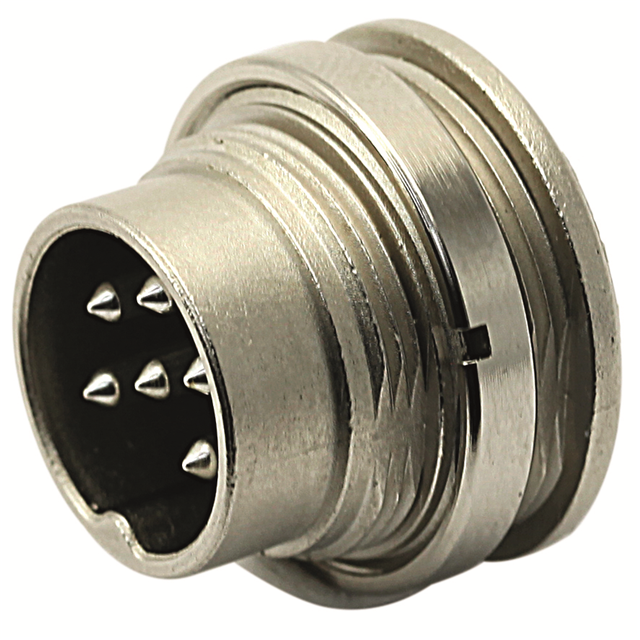

McGill Microwave Systems T 3506 150	For Male Pins	M16-8	Shielded	Receptacle Housing	UL94 V-0	Panel Mount	Silver	Die Cast	Crimp	Keyed	IP40	1.5 mm	Threaded	Bulkhead Front Side Nut	8	Nickel	Thermoplastic									100 °C	-40 °C			Circular	Contacts Not Included	2 pcs	Connector Nut
