747950 Series

Catalog

KIT,PLUG,37P,HDE,SHLD ENCLSRE

Part	Number of Rows	Mounting Type	Contact Type	Connector Style	Number of Positions	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Current Rating (Amps)	Termination	Features	Connector Type	Shell Size, Connector Layout	Contact Material	Voltage Rating	Color	Flange Feature [custom]	Flange Feature [custom]	Operating Temperature [Max]	Operating Temperature [Min]

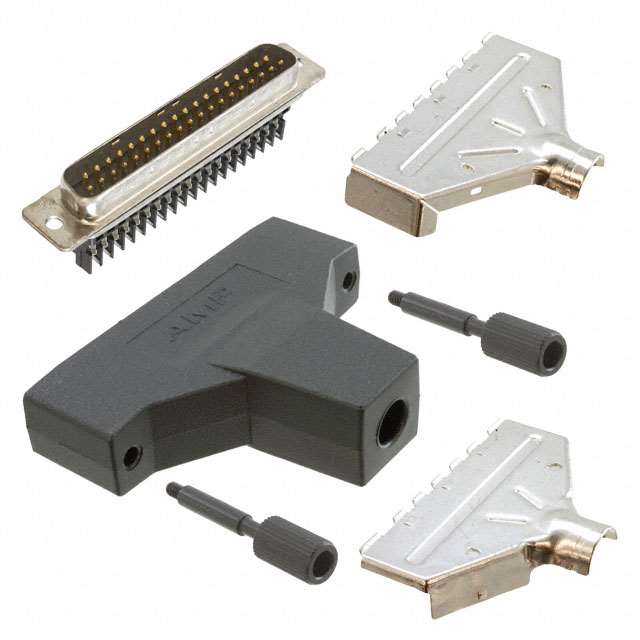

TE Connectivity Raychem Cable Protection 1-747950-5	2	Free Hanging (In-Line)	Signal	D-Sub	37	UL94 V-0	22 AWG	26 AWG	Gold	Varies by Wire Gauge	Discrete Wire IDC	Backshell Cover Grounding Indents Mounting Screws Shielded	Male Pins Plug	4 (DC C)	Phosphor Bronze	250 VDC	Black	Cable Side	Male Jackscrew (4-40)	105 ░C	-55 °C

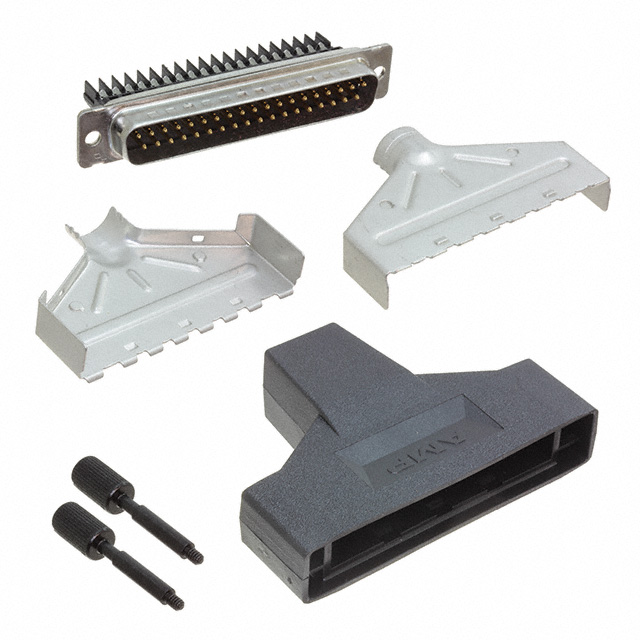

TE Connectivity Raychem Cable Protection 1-747950-4	2	Free Hanging (In-Line)	Signal	D-Sub	37	UL94 V-0	26 AWG	30 AWG	Gold	Varies by Wire Gauge	Discrete Wire IDC	Backshell Cover Grounding Indents Mounting Screws Shielded	Male Pins Plug	4 (DC C)	Phosphor Bronze	250 VDC	Black	Cable Side	Male Jackscrew (4-40)	105 ░C	-55 °C
