A-1PA-081 Series

Catalog

RF CABLE ASSEMBLY, AMC R/A PLUG, 150MM

Part	1st Contact Gender	Overall Impedance	Cable Type Size	Cable Type	Cable Outer Diameter	2nd Connector	Frequency - Max	1st Connector	Operating Temperature (Max)	Operating Temperature (Min)	2nd Contact Gender	Style	2nd Connector Mounting Type	1st Connector Mounting Type	Features	Length	Color
McGill Microwave Systems A-1PA-081-150B2	Female	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Female	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	5.906 in	Black
McGill Microwave Systems A-1PA-081-01KB2	Female	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Female	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	39.4 in	Black
McGill Microwave Systems A-1PA-081-500B2	Female	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Female	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	19.69 in	Black

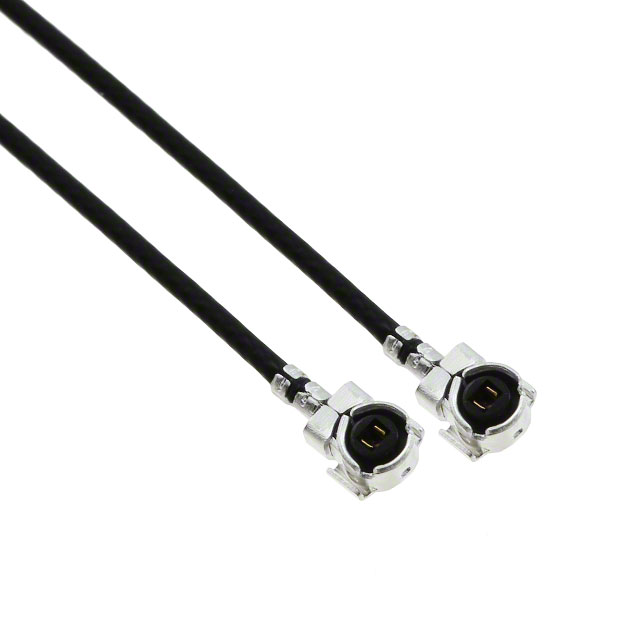

McGill Microwave Systems A-1PA-081-050B2	Female	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Female	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	1.969 in	Black
McGill Microwave Systems A-1PA-081-300B2	Female	50 Ohms	0.81 mm	0.81mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	0.81 mm	AMC Plug Right Angle U.FL (UMCC)	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	90 °C	-40 °C	Female	AMC AMC to U.FL (UMCC) U.FL (UMCC)	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded	11.811 in	Black
