DLLR-L10G Series

Catalog

SENSOR 0.36PSID 0.09" 17BIT 8DIP

Part	Mounting Type	Features	Termination Style	Maximum Pressure	Output Type	Accuracy	Port Style	Operating Temperature (Max)	Operating Temperature (Min)	Package Name	Port Diameter	Port Feature	Port Gender	Output Bits	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Pressure Type	Package Length	Package Features	Package Width	Operating Pressure

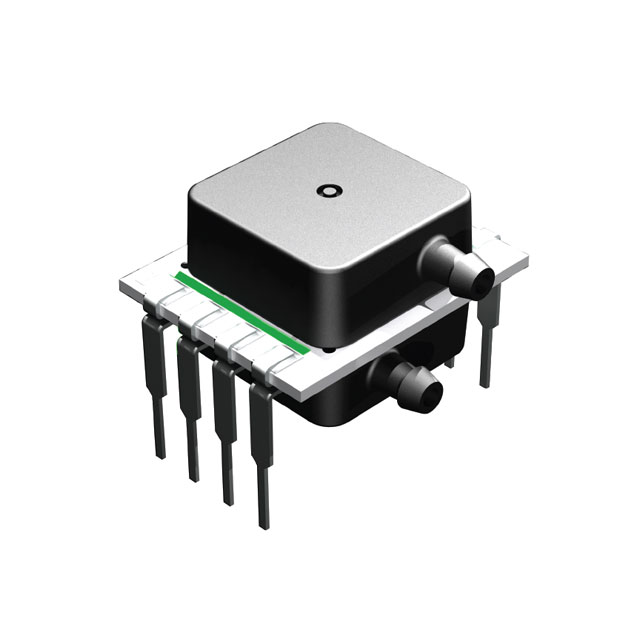

McGill Microwave Systems DLLR-L10G-E1BD-C-NAV7	Through Hole	Temperature Compensated	PC Pin	3.63 PSI	I2C SPI	0.1 % RH	Barbed	85 °C	-25 °C	8-DIP	0.09 in	Dual Tube	Male	17 b	3.6 V	1.68 V	Differential Vented Gauge	0.62 in	Dual Ports Same Side	15.75 mm	0.36 PSI
McGill Microwave Systems DLLR-L10G-E1BD-C-NAV8	Through Hole	Temperature Compensated	PC Pin	3.63 PSI	I2C SPI	0.1 % RH	Barbed	85 °C	-25 °C	8-DIP	0.09 in	Dual Tube	Male	18 b	3.6 V	1.68 V	Differential Vented Gauge	0.62 in	Dual Ports Same Side	15.75 mm	0.36 PSI
McGill Microwave Systems DLLR-L10G-E1BD-C-NAV6	Through Hole	Temperature Compensated	PC Pin	3.63 PSI	I2C SPI	0.1 % RH	Barbed	85 °C	-25 °C	8-DIP	0.09 in	Dual Tube	Male	16 b	3.6 V	1.68 V	Differential Vented Gauge	0.62 in	Dual Ports Same Side	15.75 mm	0.36 PSI
