903-368P Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

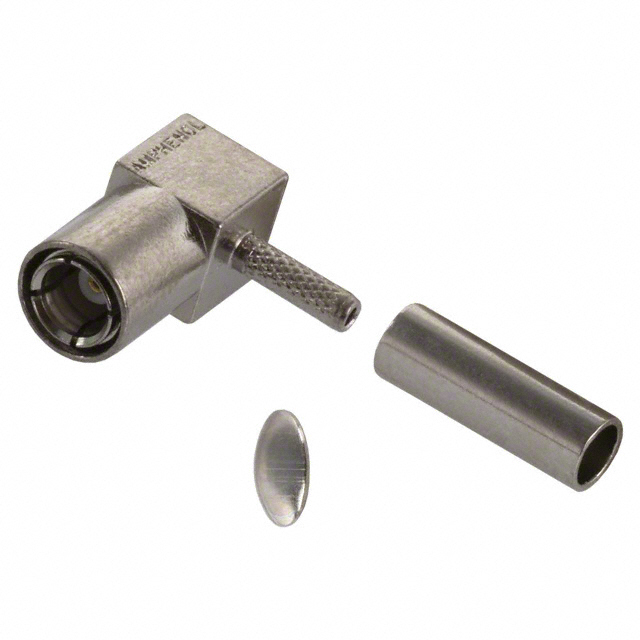

CONN SMB PLUG R/A 50 OHM SOLDER
| Part | Dielectric Material | Center Contact Plating | Body Material | Body Finish | Insertion Loss | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Shield Termination | Number of Ports | Frequency - Max | Center Contact Material | Fastening Type | Housing Color | Mounting Type | Cable Group | Contact Termination | Impedance | Connector Type | Connector Style | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Gold | Brass | Nickel | 0.6 dB | -65 °C | 165 °C | 500 cycles | Crimp | 1 | 10 GHz | Beryllium Copper | Snap-On | Silver | Free Hanging (In-Line) Right Angle | 196 RG-178 | Solder | 50 Ohm | Female Socket Plug | SMB | ||
 McGill Microwave Systems | Polytetrafluoroethylene (PTFE) | Gold | Nickel | 0.6 dB | -65 °C | 165 °C | 500 cycles | Crimp | 1 | 4 GHz | Beryllium Copper | Snap-On | Silver | Free Hanging (In-Line) Right Angle | 196 RG-178 | Solder | 50 Ohm | Female Socket Plug | SMB | 3 pcs | Connector End Cap Ferrule |
