MPLEZW Series

Catalog

LED EASYWHT WARM WHT 3000K 6SMD

Part	Flux (Nominal)	Flux (Maximum)	Flux (Minimum)	Maximum Current (Channels)	Maximum Current (Per Channel)	Current - Max	Lumens/Watt	Flux	Mounting Type	Size / Dimension Width	Size / Dimension Length	CRI (Color Rendering Index)	Package / Case	Voltage - Forward (Vf) (Typ)	Height - Seated (Max)	Package Name	Current - Test	Current - Test Count	Color	CCT (K)	CCT Description	Viewing Angle
CreeLED, Inc. MPLEZW-A1-R100-0000C030F	850 lm	900 lm	800 lm	3	250 mA	250 mA	76 lm/W	638 lm	Surface Mount	0.478 in	0.518 in	80	6-SMD No Lead	25 V	0.25 in	SMD	150 mA	3	Warm White	3000 K	4-Step MacAdam Ellipse	125 °
CreeLED, Inc. MPLEZW-A1-R100-0000C040F	850 lm	900 lm	800 lm	3	250 mA	250 mA	76 lm/W	638 lm	Surface Mount	0.478 in	0.518 in	80	6-SMD No Lead	25 V	0.25 in	SMD	150 mA	3	Neutral White	4000 K	4-Step MacAdam Ellipse	125 °

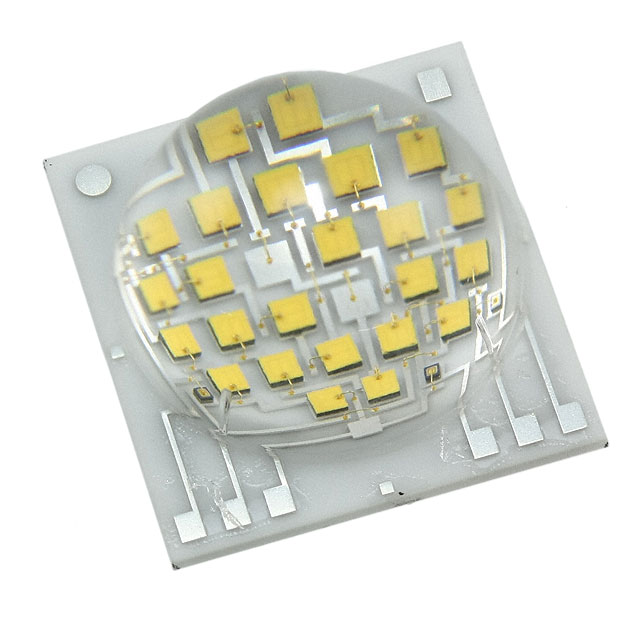

CreeLED, Inc. MPLEZW-A1-0000-0000C030F	850 lm	900 lm	800 lm	3	250 mA	250 mA	76 lm/W		Surface Mount	0.478 in	0.518 in	80	6-SMD No Lead	25 V	0.25 in	SMD	150 mA	3	Warm White	3000 K	4-Step MacAdam Ellipse	125 °
CreeLED, Inc. MPLEZW-A1-R100-0000C035F	850 lm	900 lm	800 lm	3	250 mA	250 mA	76 lm/W	638 lm	Surface Mount	0.478 in	0.518 in	80	6-SMD No Lead	25 V	0.25 in	SMD	150 mA	3	Warm White	3500 K	4-Step MacAdam Ellipse	125 °
CreeLED, Inc. MPLEZW-A1-0000-0000B030H	750 lm	800 lm	700 lm	3	250 mA	250 mA	67 lm/W	563 lm	Surface Mount	0.478 in	0.518 in	80	6-SMD No Lead	25 V	0.25 in	SMD	150 mA	3	Warm White	3000 K	2-Step MacAdam Ellipse	125 °
