770182 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

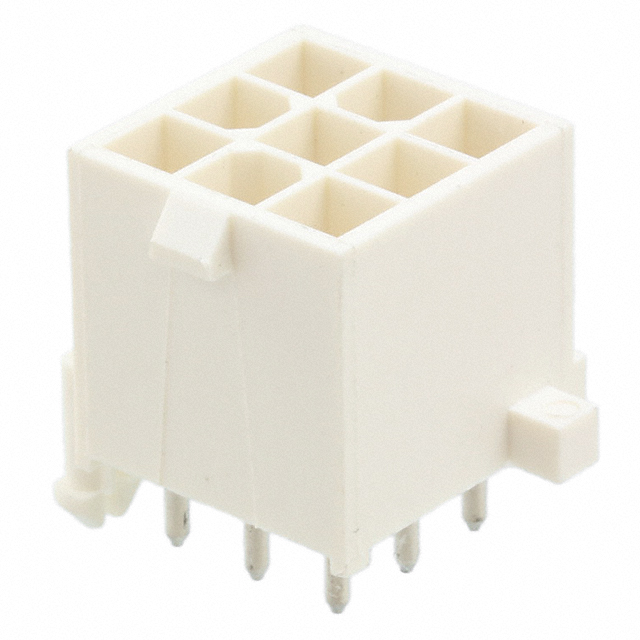

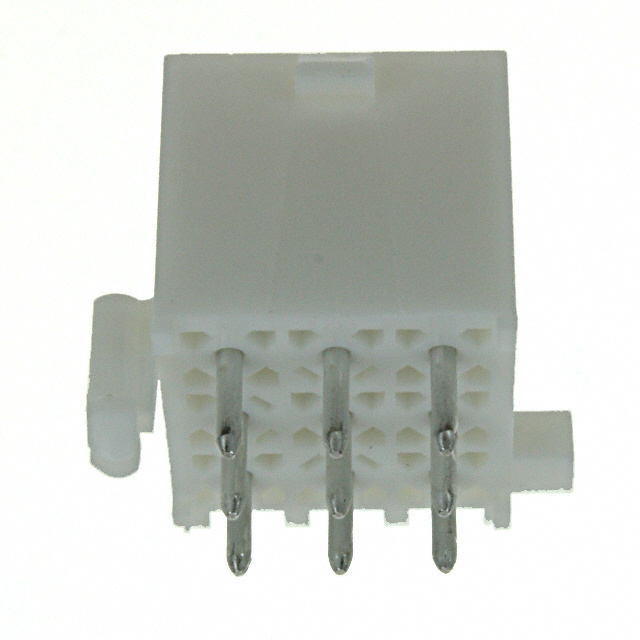

CONN HEADER VERT 9POS 4.14MM
| Part | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Rows | Insulation Color | Number of Positions Loaded | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Finish - Mating | Termination | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Insulation Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Current Rating (Amps) | Style | Applications | Contact Shape | Contact Finish - Post | Shrouding | Voltage Rating | Number of Positions | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | 150 Áin | 3.81 Ám | Male Pin | 3 | White | All | Header | -20 C | 105 ░C | Through Hole | Gold | Solder | 4.14 mm | 0.163 in | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | Locking Ramp | 30 Áin | 0.76 Ám | 4.45 mm | 0.175 in | UL94 V-0 | Varies by Wire Gauge | Board to Cable/Wire | General Purpose | Circular | Tin | Shrouded - 4 Wall | 600 VAC | 9 | 4.14 mm | 0.163 in |
 TE Connectivity Raychem Cable Protection | Brass | 150 Áin | 3.81 Ám | Male Pin | 3 | White | All | Header | -20 C | 105 ░C | Through Hole | Gold | Solder | 4.14 mm | 0.163 in | 13.5 mm | 0.531 in | Nylon Polyamide (PA) | Locking Ramp | 30 Áin | 0.76 Ám | 4.45 mm | 0.175 in | UL94 V-0 | Varies by Wire Gauge | Board to Cable/Wire | General Purpose | Circular | Tin-Lead | Shrouded - 4 Wall | 600 VAC | 9 | 4.14 mm | 0.163 in |
