MP6516 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

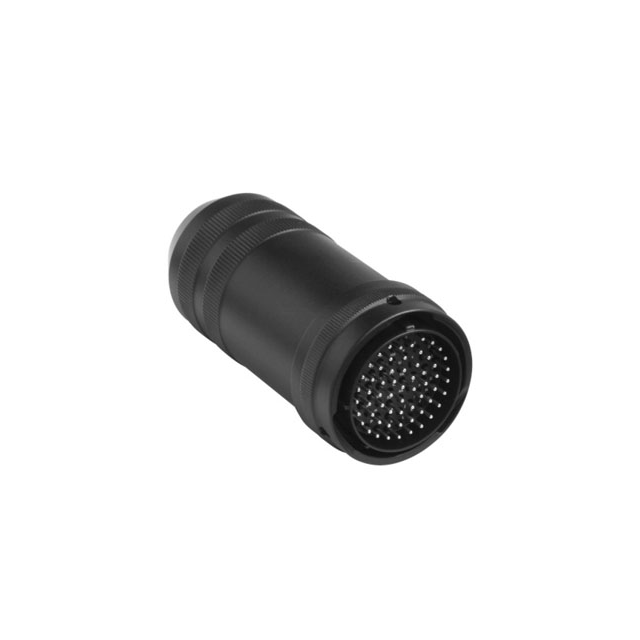

CONN PLUG MALE 39P SOLDER CUP
| Part | Fastening Type | Color | Connector Type | Ingress Protection Description | Ingress Protection IP Rating | Number of Positions | Orientation | Features | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) | Current Rating Options | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Insert Material | Shell Finish | Shell Material | Shielding | Termination | Cable Opening (Max) | Cable Opening (Min) | Contact Material | Applications | Primary Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Bayonet Lock | Black | Male Pins Plug | Dust Tight Waterproof | IP67 | 39 | Keyed | Backshell Coupling Nut PG Adapter | 20 | 39 | 13A 7.5A | 125 °C | -55 °C | Free Hanging (In-Line) | Neoprene | Black | Aluminum Die Cast | Unshielded | Solder Cup | 0.551 in | 0.354 in | Brass | Audio Lighting | Metal | Gold |
