AD8264 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

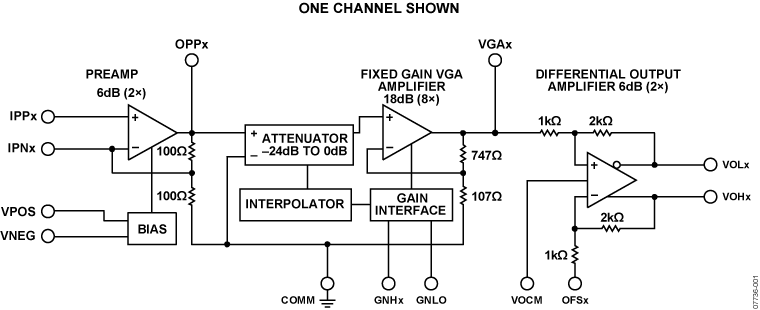

QUAD, 235 MHZ, DC-COUPLED VGA AND DIFFERENTIAL OUTPUT AMPLIFIER
| Part | Amplifier Type | Current - Input Bias | Number of Circuits | Package Width | Package Name | Package Length | Operating Temperature (Min) | Operating Temperature (Max) | Package / Case | Slew Rate | Current - Supply | Voltage - Supply Span (Max) | Voltage - Supply Span (Min) | Mounting Type | -3db Bandwidth | Output Type | Supplied Contents | Board Type | Current - Supply (Main IC) | Channels per IC (Quad) | Channels per IC (Type) | Channels per IC (Count) | Contents | Supply Configuration | Voltage - Supply (Dual) Minimum (Magnitude) | Voltage - Supply (Dual) Maximum (Magnitude) | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Variable Gain | 5 µA | 4 | 6 mm | 40-LFCSP-WQ | 6 mm | -40 °C | 105 °C | 40-WFQFN Exposed Pad CSP | 380 V/µs | 99 mA | 10 V | 4.5 V | Surface Mount | 235 MHz | Differential | |||||||||||
 Analog Devices Inc./Maxim Integrated | Variable Gain | 380 V/µs | 235 MHz | Differential | Board(s) | Fully Populated | 0.099 mA | 4 | Quad | 4 | Board | Dual Single | 2.5 V | 5 V | AD8264 |
