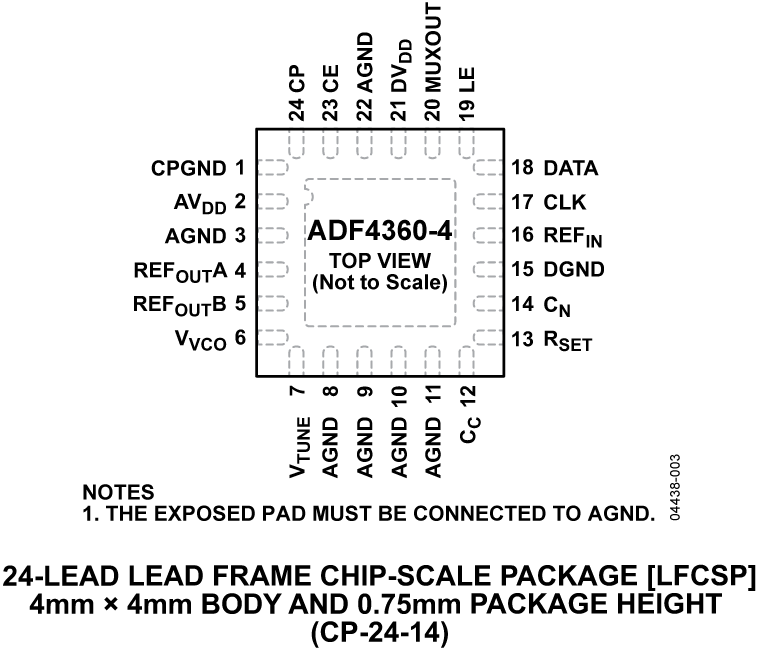

ADF4360-4 Series

Integrated Integer-N Synthesizer and VCO - Output Frequency 1450 to 1750

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Integrated Integer-N Synthesizer and VCO - Output Frequency 1450 to 1750

Part	PLL	Input	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Differential Output	Differential Input	Multiplier	Divider	Type	Operating Temperature (Min)	Operating Temperature (Max)	Input Ratio	Output Ratio	Number of Circuits	Output	Package / Case	Mounting Type	Frequency - Max	Package Width	Package Name	Package Length
Analog Devices Inc./Maxim Integrated ADF4360-4BCPZRL7	Yes	CMOS TTL	3.6 V	3 V	No	No	No	Yes	Fanout Distribution Integer N Synthesizer (RF)	-40 °C	85 °C	1	2	1	Clock	24-WFQFN Exposed Pad CSP	Surface Mount	1.75 GHz	4 mm	24-LFCSP	4 mm
Analog Devices Inc./Maxim Integrated ADF4360-4BCPZ	Yes	CMOS TTL	3.6 V	3 V	No	No	No	Yes	Fanout Distribution Integer N Synthesizer (RF)	-40 °C	85 °C	1	2	1	Clock	24-WFQFN Exposed Pad CSP	Surface Mount	1.75 GHz	4 mm	24-LFCSP	4 mm

Catalog

Integrated Integer-N Synthesizer and VCO - Output Frequency 1450 to 1750

Description

The ADF4360-4 is a fully integrated integer-N synthesizer and voltage-controlled oscillator (VCO). The ADF4360-4 is designed for a center frequency of 1600 MHz. In addition, a divide-by-2 option is available, whereby the user gets an RF output of between 725 MHz and 875 MHz.Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.ApplicationsWireless handsets (DECT, GSM, PCS, DCS, WCDMA)Test equipmentWireless LANsCATV equipment
