M12D-04PMMP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

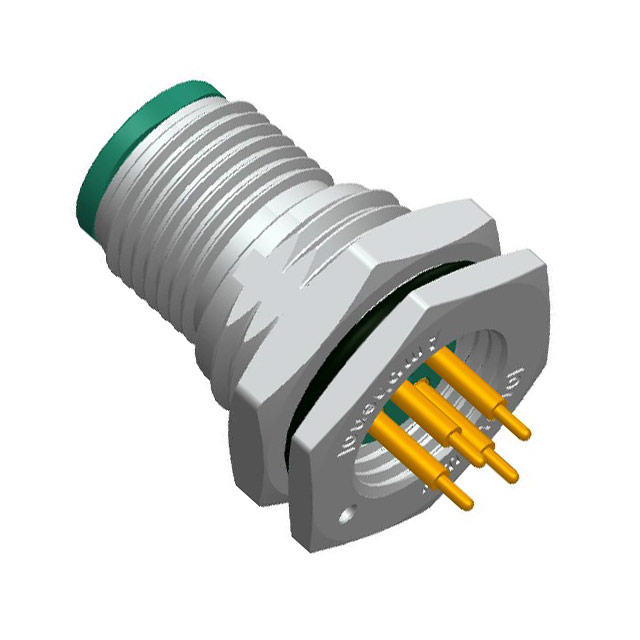

CONN PLUG MALE 4POS GOLD SOLDER
| Part | Mounting Feature | Connector Type | Shell Size - Insert | Shell Finish | Shell Material | Contact Finish - Mating | Orientation | Shielding | Termination | Fastening Type | Color | Backshell Material, Plating | Contact Material | Ingress Protection IP Rating | Ingress Protection Description | Primary Material | Mounting Type | Current Rating | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Insert Material | Voltage Rating | Voltage Rating (Type) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Bulkhead Front Side Nut | Male Pins Receptacle | M12-4 | Nickel | Zinc Alloy | Gold | D | Shielded | Solder | Threaded | Silver | Copper Alloy | Copper Alloy | IP68 | Dust Tight Waterproof | Metal | Panel Mount Through Hole | 4 A | -40 °C | 105 °C | 4 | Glass Filled Nylon PA Polyamide | 250 V | DC |
