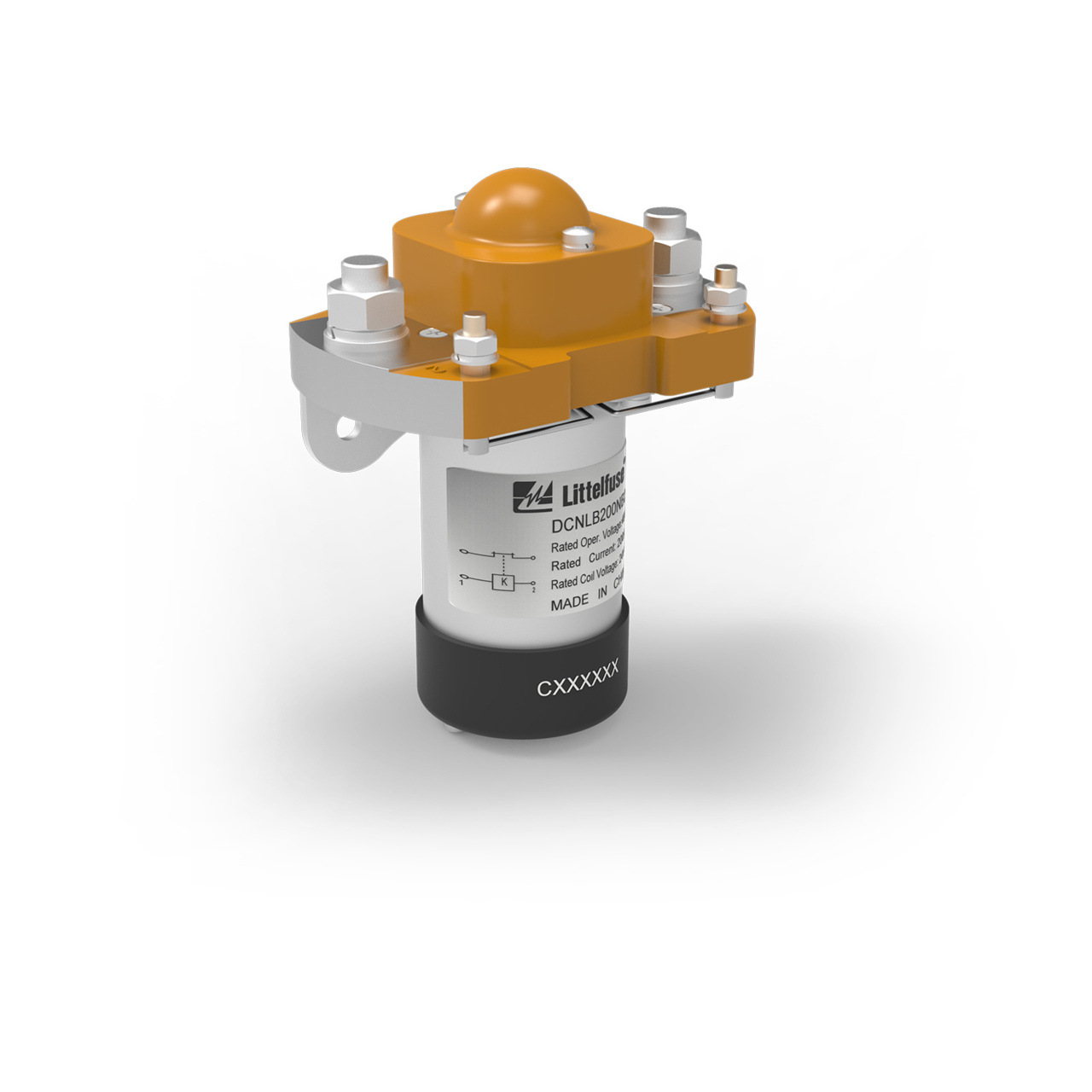

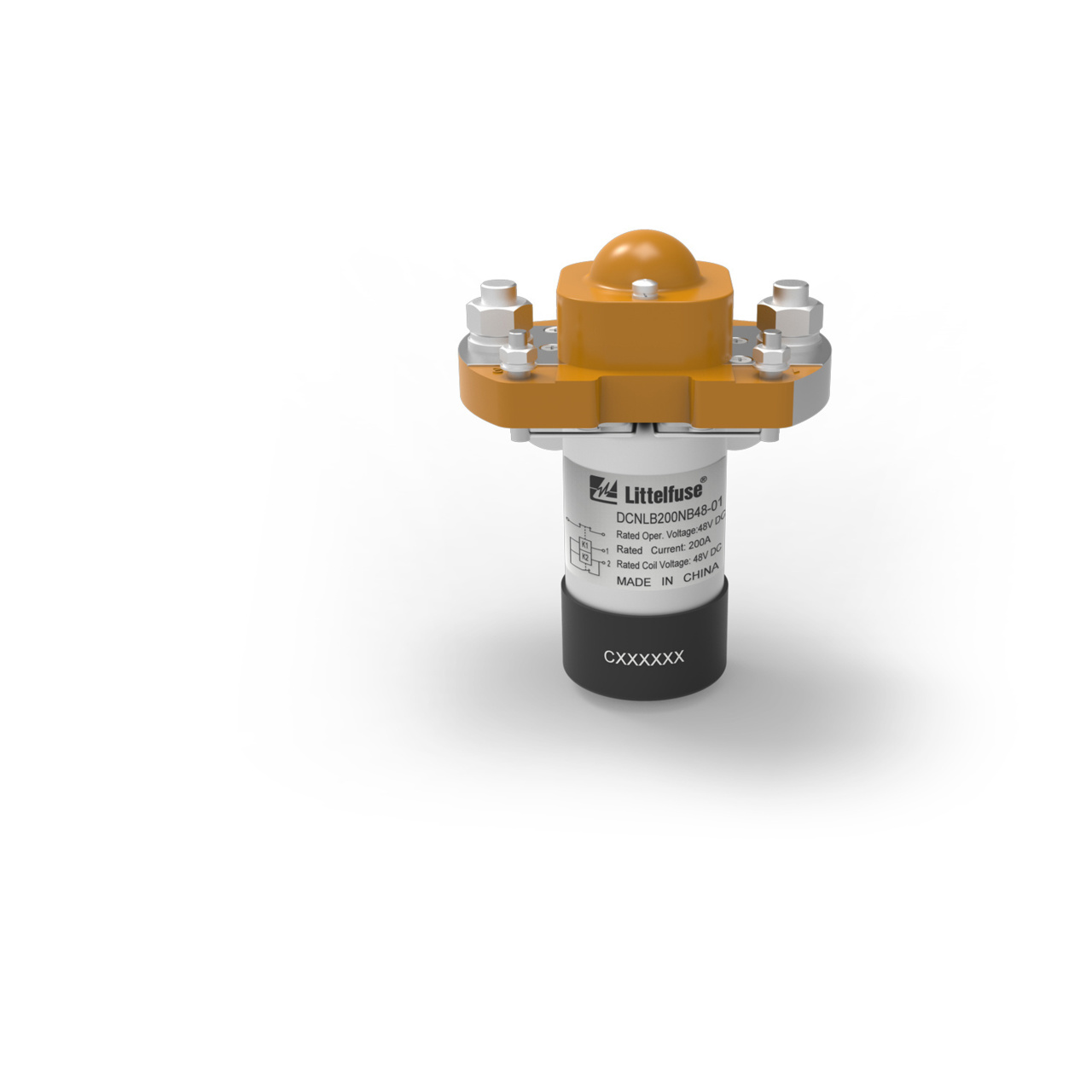

DCNLB 200A 48V NP NC 48V 2Coil Contactor
Description
AI
The DCNLB Series 48V DC contactor relay (DCNLB200NB48-01) is a normally closed relay with a dual-coil design with coil voltage rating of 48V.
Beta
⌘K
DCNLB 200A 48V NP NC 48V 2Coil Contactor
DCNLB 200A 48V NP NC 48V 2Coil Contactor
| Part | Mounting Type | Must Operate Voltage | Switching Voltage DC (Max) | Form B Count | Contact Form | Operating Temperature (Min) | Operating Temperature (Max) | Must Release Voltage | Termination Style | Coil Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Chassis Mount | 30 VDC | 60 VDC | 1 | SPST-NC | -40 °C | 85 °C | 4 VDC | Stud | 48 V | 200 A |
