AT06-4S Series

Catalog

4 POSITION OVERMOLDED PLUG, SOCK

Part	Contact Type	Color	Features	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Number of Positions	Insulation Material	Connector Type	Fastening Type	Number of Rows	Contact Termination	Note

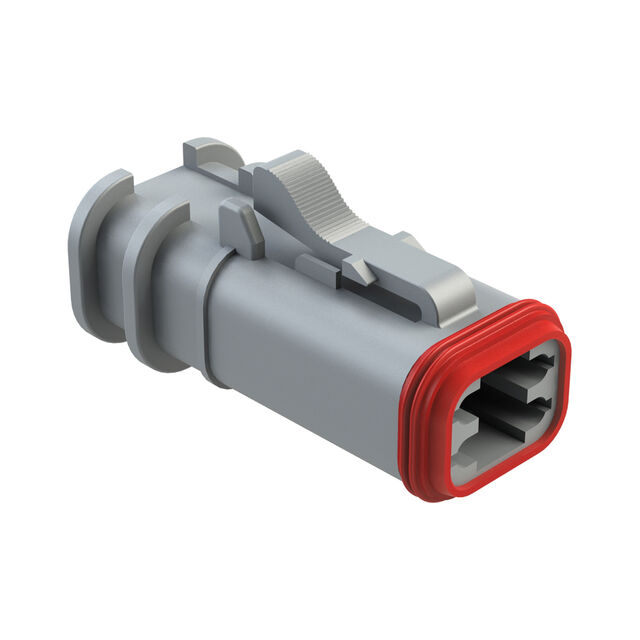

McGill Microwave Systems AT06-4S-OMRDGRY	Female Socket	Gray	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Glass Filled Nylon 6/6 Polyamide (PA66)	Plug	Latch Lock	2	Crimp

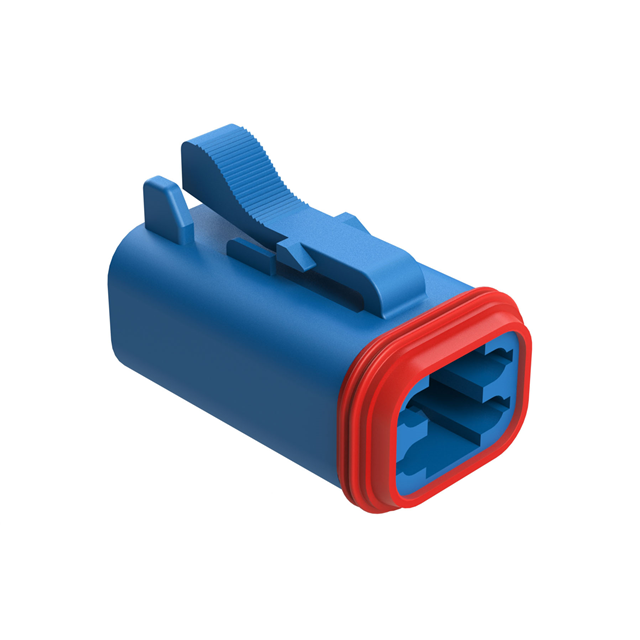

McGill Microwave Systems AT06-4S-BLU	Female Socket	Blue	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included

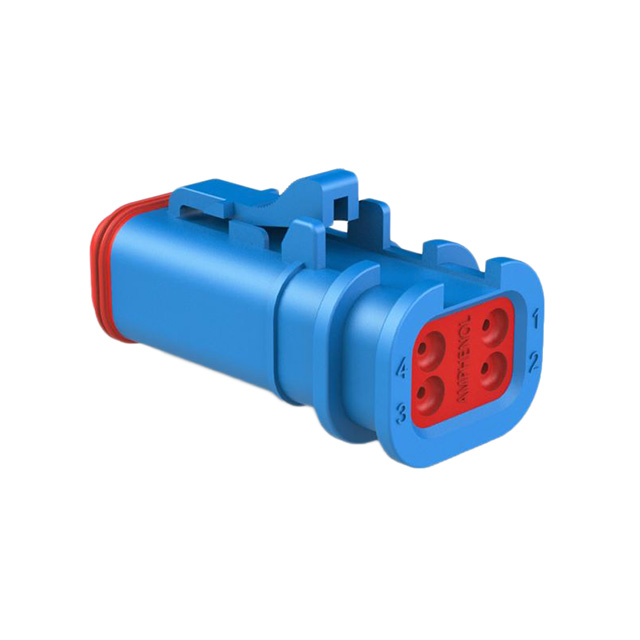

McGill Microwave Systems AT06-4S-OMBLU	Female Socket	Blue	IP67	125 °C	-55 °C	Free Hanging (In-Line)	4	Glass Filled Nylon 6/6 Polyamide (PA66)	Plug	Latch Lock	2	Crimp	Contacts Not Included
McGill Microwave Systems AT06-4S	Female Socket	Gray	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included

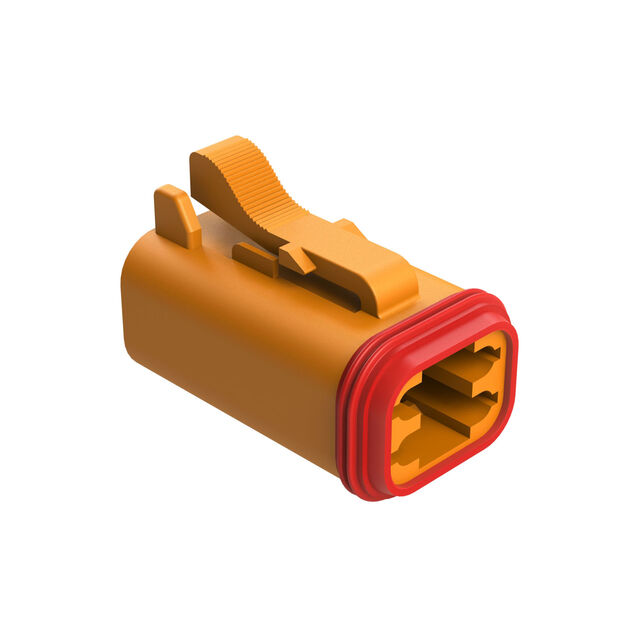

McGill Microwave Systems AT06-4S-RD01ORG	Female Socket	Orange	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp

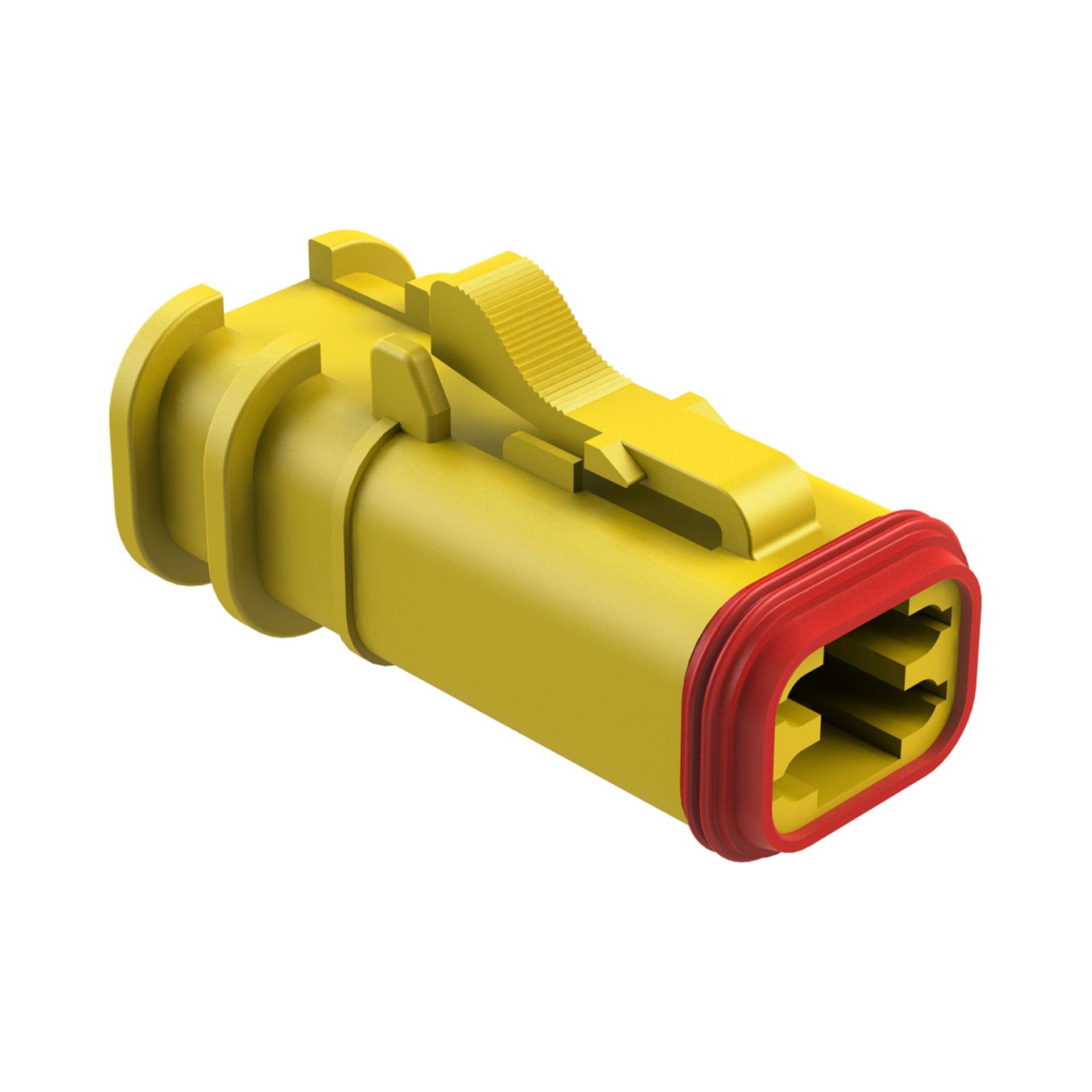

McGill Microwave Systems AT06-4S-OMRDYEL	Female Socket	Yellow	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Glass Filled Nylon 6/6 Polyamide (PA66)	Plug	Latch Lock	2	Crimp
McGill Microwave Systems AT06-4S-SR02BLK	Female Socket	Black	Strain Relief	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included

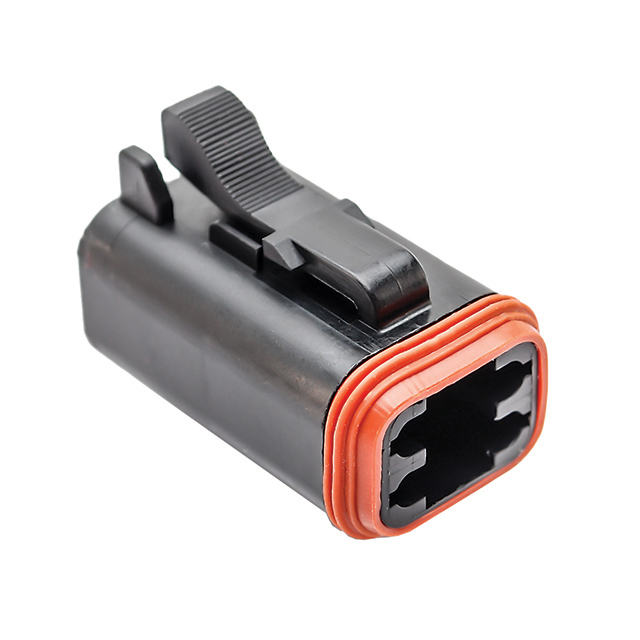

McGill Microwave Systems AT06-4S-BLK	Female Socket	Black	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included
McGill Microwave Systems AT06-4S-SR01GRY	Female Socket	Gray	Cap (Cover) IP68 IP69K Sealed Strain Relief	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included

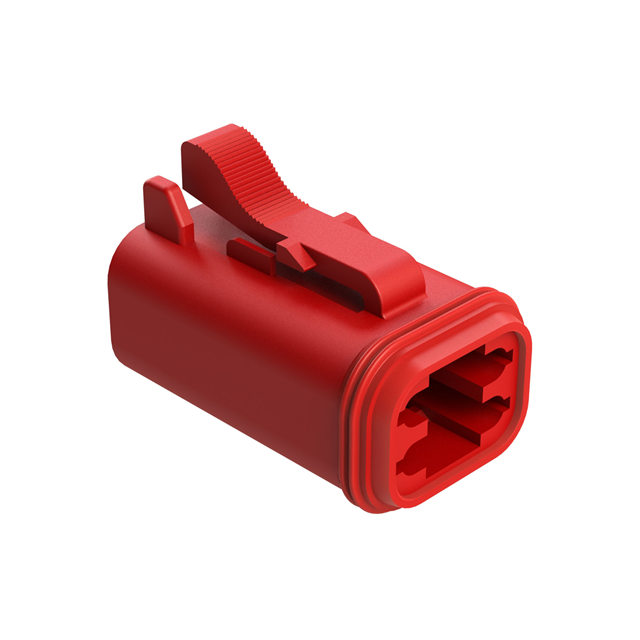

McGill Microwave Systems AT06-4S-RED	Female Socket	Red	Sealed	125 °C	-55 °C	Free Hanging (In-Line)	4	Thermoplastic	Plug	Latch Lock	2	Crimp	Contacts Not Included
