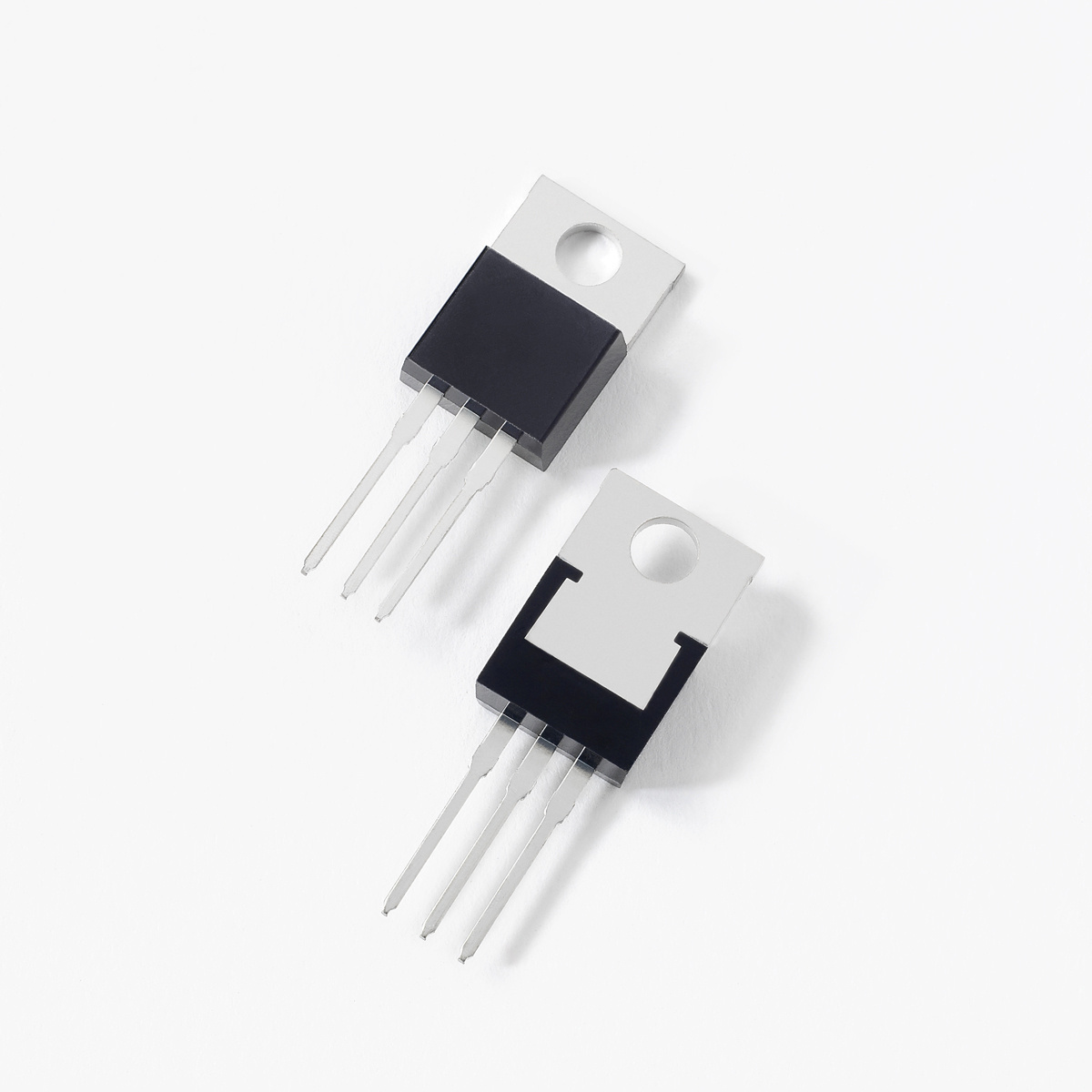

DST40100C Series
Manufacturer: LITTELFUSE
Beta
⌘K
100V 40A ULTRALOW SCHOTTKY DST _TO-220AB
| Part | Package Name | Technology | Package / Case | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Mounting Type | Voltage - Forward (Vf) (Max) | Current - Average Rectified (Io) (per Diode) | Diode Pair Count | Diode Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | TO-220AB | Schottky | TO-220-3 | 150 °C | -55 °C | 100 V | 1 mA | 500 ns | 200 mA | Through Hole | 750 mV | 20 A | 1 pair | Common Cathode |
