SF1212 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

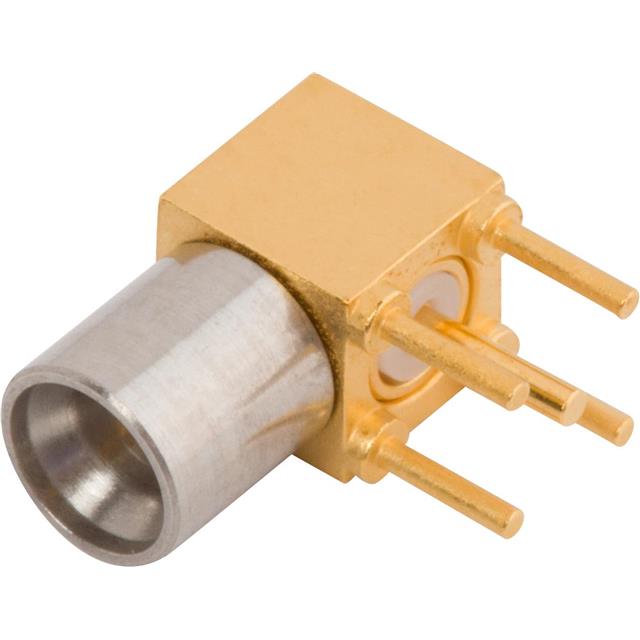

CONN SMP PLUG R/A 50 OHM PCB
| Part | Center Contact Plating | Dielectric Material | Body Finish | Body Material | Center Contact Material | Housing Color | Contact Termination | Connector Type | Features | Connector Style | Number of Ports | Fastening Type | Shield Termination | Impedance | Mounting Type | Frequency - Max | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Beryllium Copper | Gold | Solder | Male Pin Plug | Smooth Bore | SMP | 1 | Snap-On | Solder | 50 Ohm | Right Angle Through Hole | 20 Gbps | |
McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Beryllium Copper | Gold | Solder | Male Pin Plug | Full Detent | SMP | 1 | Snap-On | Solder | 50 Ohm | Right Angle Through Hole | 20 Gbps | |
McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | Silver | Solder | Male Pin Plug | Limited Detent | SMP | 1 | Snap-On | Solder | 50 Ohm | Right Angle Through Hole | 20 Gbps | 500 cycles | |
 McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | Silver | Solder | Male Pin Plug | Full Detent | SMP | 1 | Snap-On | Solder | 50 Ohm | Right Angle Through Hole | 20 Gbps | 100 cycles | |
 McGill Microwave Systems | Gold | Polytetrafluoroethylene (PTFE) | Stainless Steel | Beryllium Copper | Silver | Solder | Male Pin Plug | Smooth Bore | SMP | 1 | Snap-On | Solder | 50 Ohm | Right Angle Through Hole | 20 Gbps | 1000 cycles |
