SF3311 Series

Catalog

1.85MM MALE SOLDERLESS PCB COMPR

Part	Body Material	Mating Cycles	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Connector Type	Impedance	Features	Fastening Type	Frequency - Max	Contact Termination	Mounting Feature	Center Contact Material	Mounting Type	Connector Plug Diameter	Shield Termination	Includes	Includes Total Count	Insertion Loss	Number of Ports

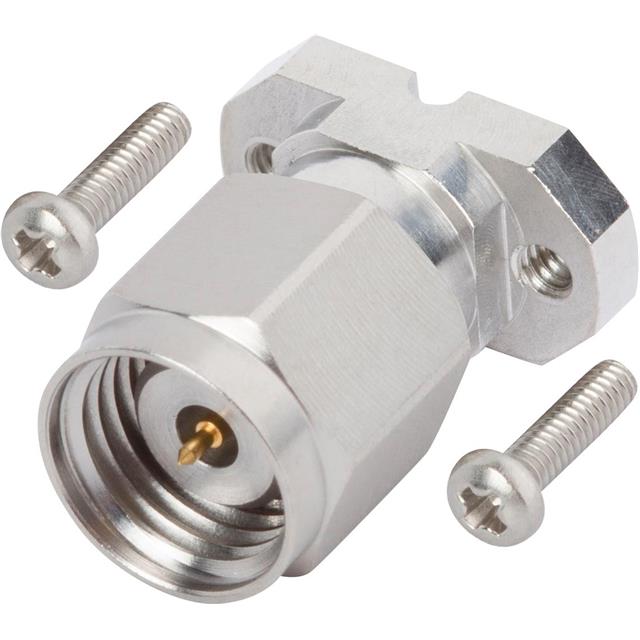

McGill Microwave Systems SF3311-60014-2S	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Silver	Male Pin Plug	50 Ohm	Mounting Hardware	Threaded	50 GHz	Compression	Flange	Beryllium Copper	Surface Mount	1.85 mm	Screw
McGill Microwave Systems SF3311-60014-1S	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Silver	Male Pin Plug	50 Ohm	Mounting Hardware	Threaded	50 GHz	Compression	Flange	Beryllium Copper	Surface Mount	1.85 mm	Screw

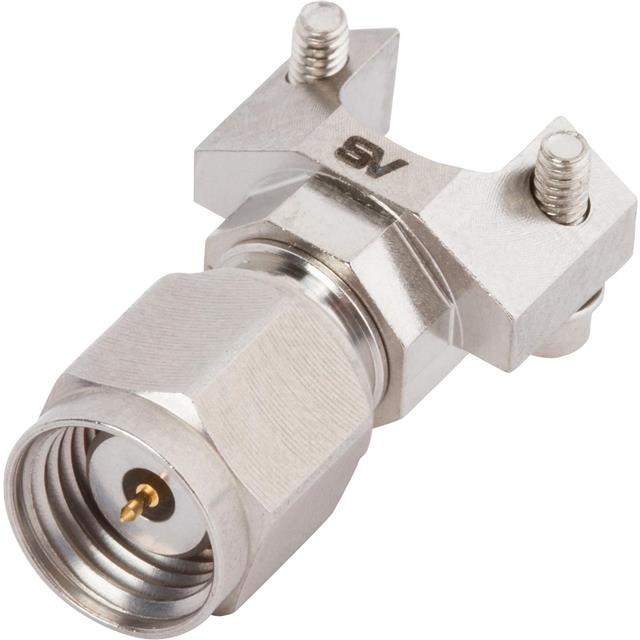

McGill Microwave Systems SF3311-60012	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Silver	Male Pin Plug	50 Ohm	Mounting Hardware	Threaded	65 GHz	Compression		Beryllium Copper	Board Edge End Launch	1.85 mm	Screw	Connector Screws	3 pcs	0.322 dB	1

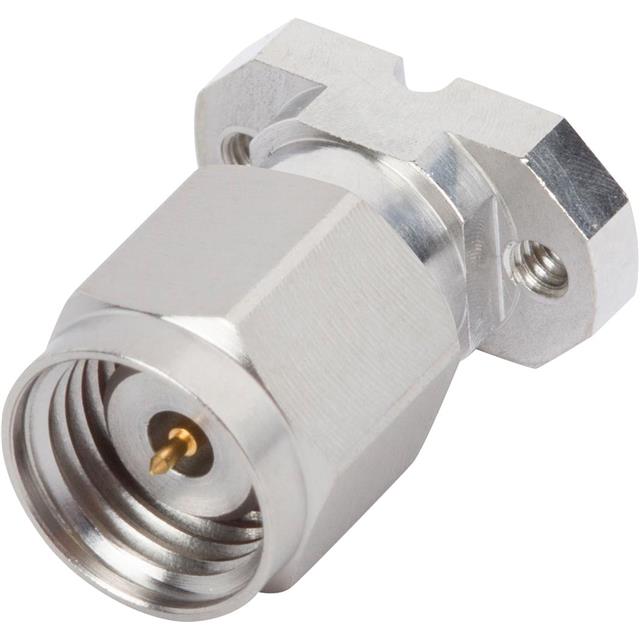

McGill Microwave Systems SF3311-60014	Stainless Steel	500 cycles	Gold	-65 °C	165 °C	Silver	Male Pin Plug	50 Ohm		Threaded	50 GHz	Compression	Flange	Beryllium Copper	Surface Mount	1.85 mm	Screw
