CG2163 Series
Manufacturer: Renesas Electronics Corporation
Beta
⌘K

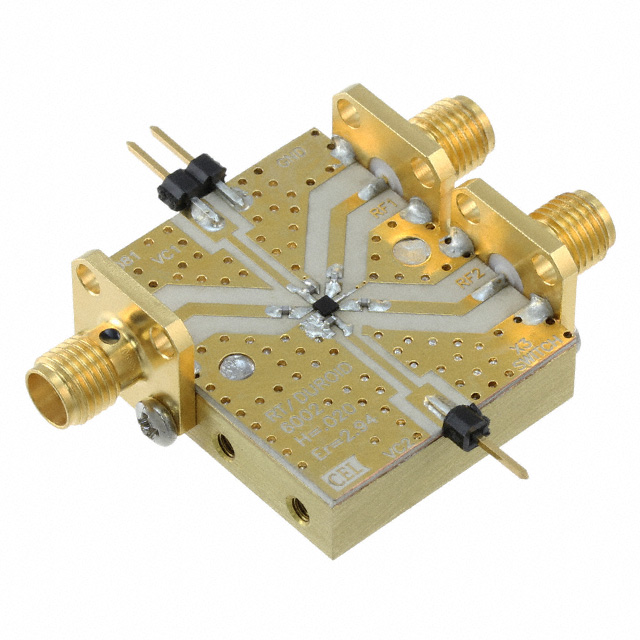

EVAL BOARD FOR CG2163X3
| Part | Supplied Contents | For Use With/Related Products | Contents | Type | Frequency (Min) | Frequency (Max) | Utilized IC / Part | Operating Temperature (Min) | Operating Temperature (Max) | Test Frequency | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Impedance | RF Type | Package / Case | Circuit | Insertion Loss | Package Name | Package Length | Package Width | Frequency Range (Max) | Frequency Range (Min) | P1dB | Isolation | IIP3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Renesas Electronics Corporation | Board(s) | CG2163X3 | Board | SPDT Switch | 2.4 GHz | 6 GHz | CG2163X3 | ||||||||||||||||||
 Renesas Electronics Corporation | -45 °C | 85 °C | 6 GHz | 1.8 V | 5 V | 50 Ohm | 802.11a ac b g n | 6-XFDFN Exposed Pad | SPDT | 0.5 dB | 6-TSON | 1.5 mm | 1.5 mm | 6 GHz | 2.4 GHz | 32 dBm | |||||||||
Renesas Electronics Corporation | -45 °C | 85 °C | 6 GHz | 1.8 V | 5 V | 50 Ohm | 802.11a ac b g n | 6-XFDFN Exposed Pad | SPDT | 0.5 dB | 6-TSON | 1.5 mm | 1.5 mm | 6 GHz | 2.4 GHz | 32 dBm | 31 dB | 55 dBm |
