3013W3S Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

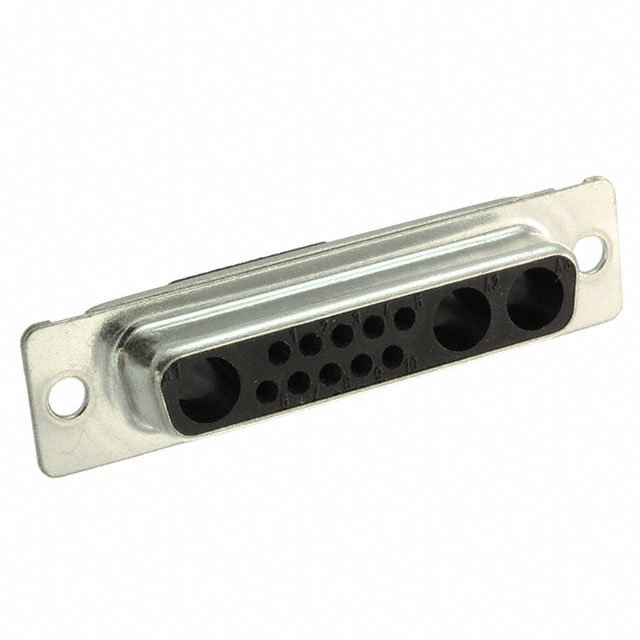

CONN D-SUB RCPT 13POS VERT SLDR
| Part | Termination | Number of Rows | Finish | Shell Material | Contact Type | Connector Type | Current Rating | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Connector Style | Ingress Protection | Flange Feature | Features | Shell Size | Connector Layout | Part Code | Number of Positions (Special) | Position Types | Number of Positions (Standard) | Number of Positions (Total) | Contact Finish | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Color | Dielectric Material | Voltage Rating | Contact Material | Wire Gauge | Contact Form | Backset Spacing | Current Rating Options | Number of Positions (Power) | Number of Positions (Normal) | Note | Shell Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Solder | 2 | Tin Plated | Steel | Coax or Power Signal | Female Sockets Receptacle | 7.5 A | UL94 V-0 | 0 | Flash | Flash | Combo D-Sub | IP20 | Mating Side (4-40) | Board Lock | 3 | B DB | 13C3 13W3 | 3 | Coax Power | 10 | 13 | Gold | Through Hole | 125 °C | -55 °C | Green | Glass Filled Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | ||||||||
McGill Microwave Systems | Solder Cup | 2 | Tin Plated | Steel | Coax or Power Signal | Female Sockets Receptacle | 7.5 A | UL94 V-0 | 0 | Flash | Flash | Combo D-Sub | IP20 | Cable Side (4-40) | 3 | B DB | 13C3 13W3 | 3 | Coax Power | 10 | 13 | Gold | Free Hanging (In-Line) | 125 °C | -55 °C | Green | Glass Filled Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | 20 AWG | Machined | |||||||
 McGill Microwave Systems | Solder | 2 | Tin Plated | Steel | Power Signal | Female Sockets Receptacle | UL94 V-0 | 30 µin | Combo D-Sub | Housing Shell (4-40) | Board Lock | 3 | B DB | 13C3 13W3 | 13 | Gold | Board Edge Right Angle Through Hole | 125 °C | -55 °C | Green | Glass Filled Polybutylene Terephthalate (PBT) | Copper Alloy | 0.287 in | 20A 5A | 3 | 10 | ||||||||||||
McGill Microwave Systems | Female Sockets Receptacle | |||||||||||||||||||||||||||||||||||||
McGill Microwave Systems | Female Sockets Receptacle | |||||||||||||||||||||||||||||||||||||
McGill Microwave Systems | Solder Cup | 2 | Tin Plated | Steel | Coax or Power Signal | Female Sockets Receptacle | 7.5 A | UL94 V-0 | 0 | Flash | Flash | Combo D-Sub | IP20 | Cable Side (M3) | 3 | B DB | 13C3 13W3 | 3 | Coax Power | 10 | 13 | Gold | Free Hanging (In-Line) | 125 °C | -55 °C | Green | Glass Filled Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | 20 AWG | Machined | |||||||
McGill Microwave Systems | Solder | 2 | Tin Plated | Steel | Coax or Power Signal | Female Sockets Receptacle | 7.5 A | UL94 V-0 | 0 | Flash | Flash | Combo D-Sub | IP20 | Housing Shell (Unthreaded) | 3 | B DB | 13C3 13W3 | 3 | Coax Power | 10 | 13 | Gold | Through Hole | 125 °C | -55 °C | Green | Glass Filled Polybutylene Terephthalate (PBT) | 250 V | Copper Alloy | |||||||||
 McGill Microwave Systems | 2 | Tin Plated | Steel | Coax Coax or Power Power | Receptacle for Female Contacts | Combo D-Sub | Housing Shell (Unthreaded) | 3 | B DB | 13C3 13W3 | 3 | Coax Power | 10 | 13 | Free Hanging (In-Line) | 125 °C | -55 °C | Black | Glass Filled Polybutylene Terephthalate (PBT) | Contacts Not Included | 320 µin |
