282807 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

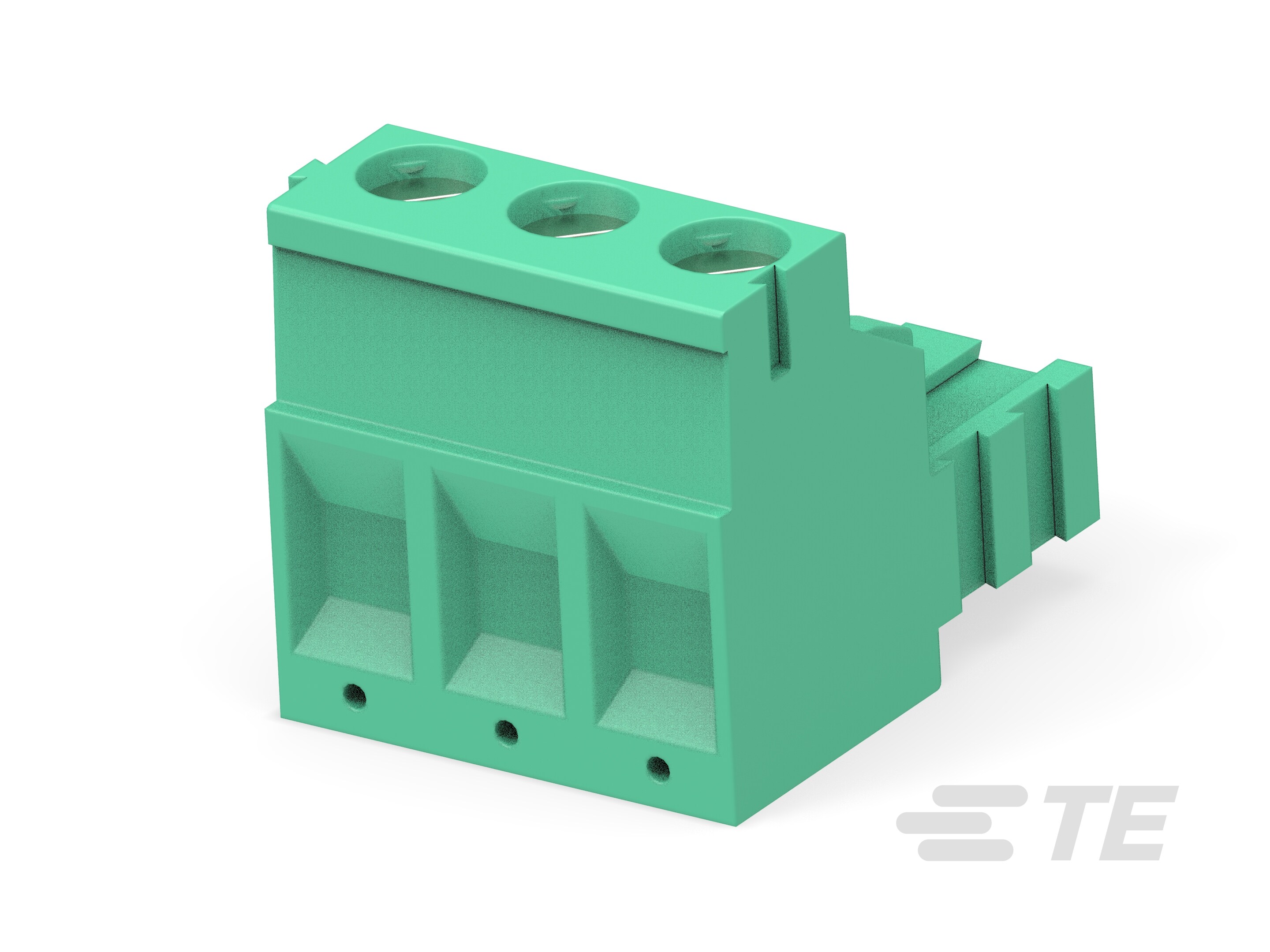

TERM BLOCK PLUG 3POS STR 5.08MM
| Part | Mounting Type | Type | Voltage - UL | Color | Features | Pitch | Contact Mating Finish | Termination Style | Number of Positions | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Plug Wire Entry Angle | Positions Per Level | Current - UL | Number of Levels | Housing Material | Insulation Height | Screw Size | Material Flammability Rating | Wire Strip Length (Min) | Wire Strip Length (Max) | Contact Material | Torque - Screw |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Free Hanging (In-Line) | Female Sockets Plug | 300 V | Green | Interlocking (Side) Retention Latches (Non-Wire Side) | 5.08 mm | Tin | Screw - Rising Cage Clamp | 3 | 30 AWG | 12 AWG | -40 °C | 110 °C | 180 ° | 3 | 15 A | 1 | Nylon 6/6 PA66 Polyamide | 0.61 in | M3 | UL94 V-0 | 6 mm | 7.5 mm | Phosphor Bronze | 0.79 Nm |
