AD808 Series

622 Mbps, Low Power, Post-Amp/Clock and Data Recovery IC

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

622 Mbps, Low Power, Post-Amp/Clock and Data Recovery IC

Part	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Package Width	Package Name	Package Length	Type
Analog Devices Inc./Maxim Integrated AD808-622BR	5.5 V	4.5 V	-40 °C	85 °C	Surface Mount	3.9 mm	16-SOIC	0.154 in	Receiver
Analog Devices Inc./Maxim Integrated AD808-622BRZRL7	5.5 V	4.5 V	-40 °C	85 °C	Surface Mount	3.9 mm	16-SOIC	0.154 in	Receiver
Analog Devices Inc./Maxim Integrated AD808-622BRZ	5.5 V	4.5 V	-40 °C	85 °C	Surface Mount	3.9 mm	16-SOIC	0.154 in	Receiver

Catalog

622 Mbps, Low Power, Post-Amp/Clock and Data Recovery IC

Description

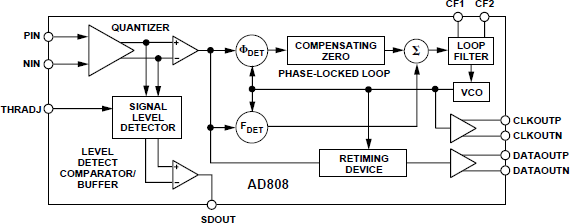

The AD808 provides the receiver functions of data quantization, signal level detect, clock recovery and data retiming for 622 Mbps NRZ data. The device, together with a PIN diode/preamplifier combination, can be used for a highly integrated, low cost, low power SONET OC-12 or SDH STM-4 fiber optic receiver.
