2337824 Series

Catalog

DISCRETE ETHERNET MAGNETICS DUAL

Part	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Height - Seated (Max)	Return Loss (Min)	Termination Style	Insertion Loss (Max)	Turns Ratio - Secondary	Turns Ratio - Primary	Voltage - Isolation	Size / Dimension Length	Size / Dimension Width
TE Connectivity AMP Connectors 2337824-2	-40 °C	105 °C	Surface Mount

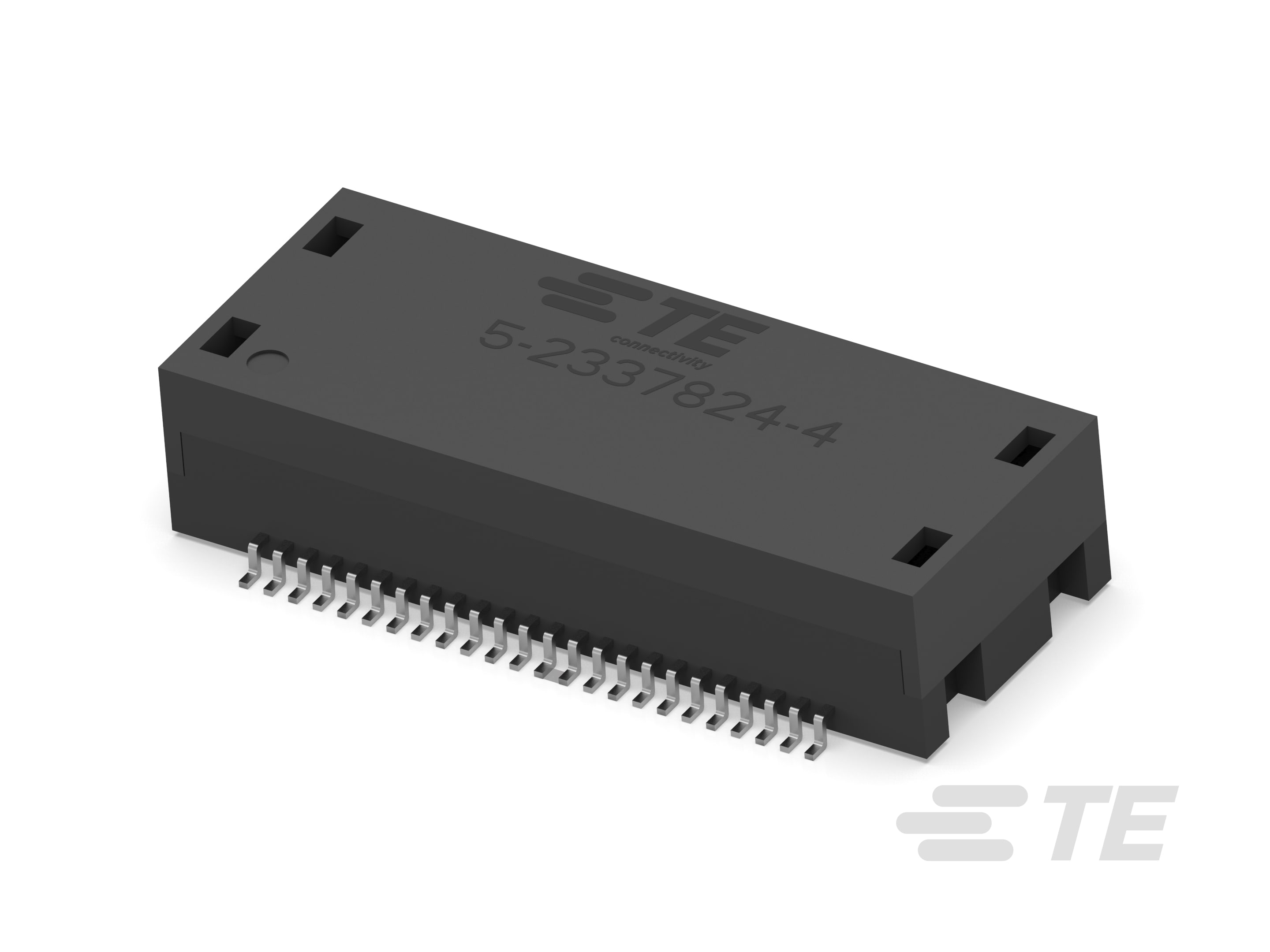

TE Connectivity AMP Connectors 5-2337824-4	-40 °C	105 °C	Surface Mount	0.285 in	-18 dB	Gull Wing	-1 dB	1	1	1500 Vrns	1.232 in	0.48 in

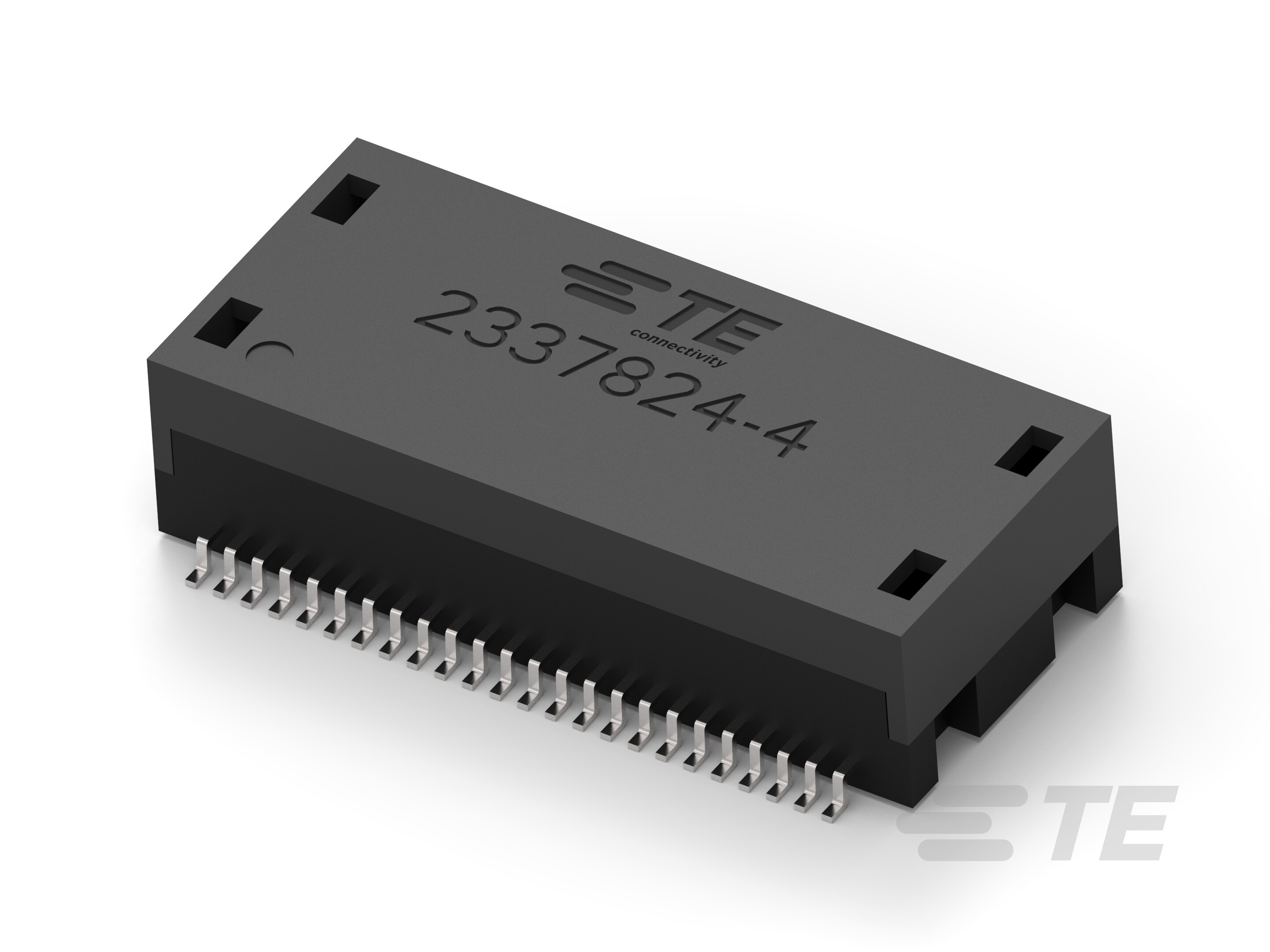

TE Connectivity AMP Connectors 2337824-4	-40 °C	105 °C	Surface Mount
