M12A-05PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

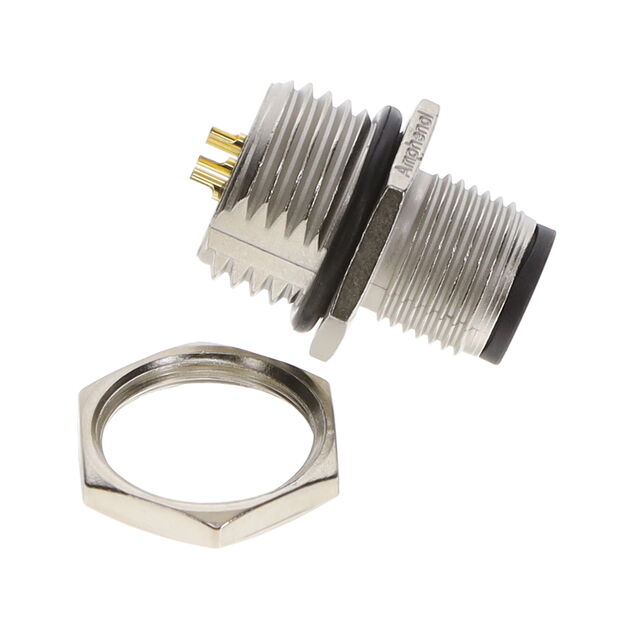

CONN PLUG MALE 5P GOLD SLDR CUP
| Part | Voltage Rating | Voltage Rating (Type) | Termination | Contact Finish - Mating | Shell Size - Insert | Color | Shell Finish | Mounting Type | Number of Positions | Operating Temperature (Min) | Operating Temperature (Max) | Ingress Protection Description | Ingress Protection IP Rating | Insert Material | Contact Material | Connector Type | Primary Material | Shell Material | Current Rating | Shielding | Orientation | Mounting Feature | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 60 V | DC | Solder Cup | Gold | M12-5 | Silver | Nickel | Panel Mount | 5 | -40 °C | 85 °C | Dust Tight Water Resistant Waterproof | IP68 IP69K | Glass Filled Nylon PA Polyamide | Copper Alloy | Male Pins Plug | Metal | Zinc Alloy | 4 A | Shielded | A | Bulkhead Front Side Nut | Threaded |
 McGill Microwave Systems | 60 V | DC | Solder Cup | Gold | M12-5 | Silver | Nickel | Panel Mount | 5 | -40 °C | 105 °C | Dust Tight Water Resistant Waterproof | IP68 IP69K | Glass Filled Nylon PA Polyamide | Copper Alloy | Male Pins Plug | Metal | Zinc Alloy | 4 A | Shielded | A | Bulkhead Rear Side Nut | Threaded |
 McGill Microwave Systems | 60 V | DC | Solder Cup | Gold | M12-5 | Silver | Nickel | Panel Mount | 5 | -40 °C | 105 °C | Dust Tight Water Resistant Waterproof | IP68 IP69K | Glass Filled Nylon PA Polyamide | Copper Alloy | Male Pins Plug | Metal | Zinc Alloy | 4 A | Shielded Unshielded | A | Bulkhead Rear Side Nut | Threaded |
