Q-0B04N0 Series

Catalog

CBL ASSY BNC-TNC JACK-JACK 9.8'

Part	2nd Connector	Style	2nd Contact Gender	Color	1st Contact Gender	Features	Frequency - Max	2nd Connector Mounting Type	1st Connector	Cable Type	Overall Impedance	1st Connector Mounting Type	Length	Length (ft)

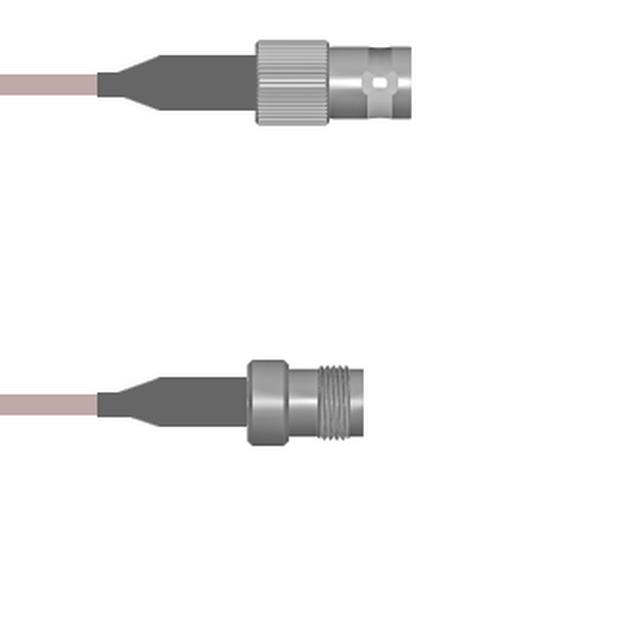

McGill Microwave Systems Q-0B04N000H003M	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	118.1 in
McGill Microwave Systems Q-0B04N000H009i	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	228.6 mm
McGill Microwave Systems Q-0B04N000H.25M	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	9.843 in
McGill Microwave Systems Q-0B04N000H072i	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	72 in
McGill Microwave Systems Q-0B04N000H2.5M	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	98.4 in	8.2 ft
McGill Microwave Systems Q-0B04N000H1.5M	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	59.1 in	4.9 ft
McGill Microwave Systems Q-0B04N000H012i	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	12 in
McGill Microwave Systems Q-0B04N000H002M	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)		6.6 ft
McGill Microwave Systems Q-0B04N000H108i	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	9 ft
McGill Microwave Systems Q-0B04N000H006i	TNC Jack	BNC TNC	Female	Copper	Female	Shielded	4 GHz	Free Hanging (In-Line)	BNC Jack	142 RG	50 Ohms	Free Hanging (In-Line)	0.5 ft
