97-32 Series

Catalog

CONN MALE INSERT 4P SOLDER CUP

Part	Connector Type	Insert Material	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Contact Finish - Mating	Shielding	Shell Size - Insert Width	Shell Size - Insert Length	Features	Number of Positions	Applications	Contact Material
Amphenol Aerospace Operations 97-32-17P	Insert Male Pins	DAP Diallyl Phthalate	Solder Cup	125 °C	-55 °C	N (Normal)	Silver	Unshielded	17 mm	32 mm	Insert Only Requires Shell	4	Automotive Industrial	Copper Alloy

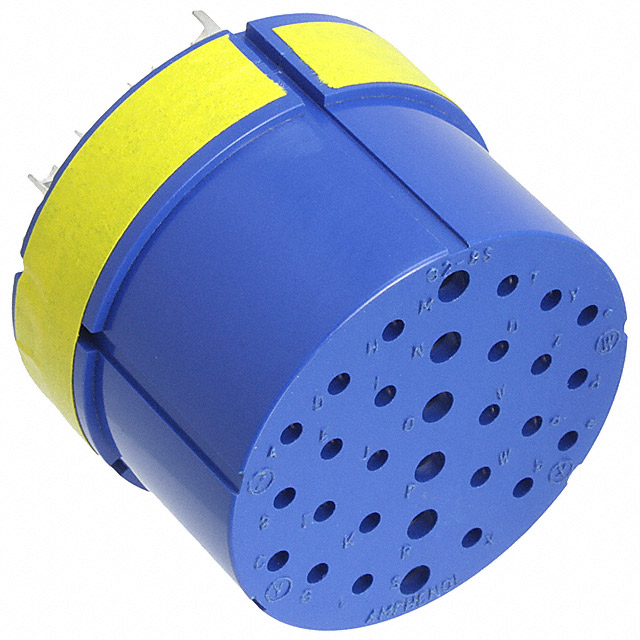

Amphenol Aerospace Operations 97-32-8S	Female Sockets Insert	DAP Diallyl Phthalate	Solder Cup	125 °C	-55 °C	N (Normal)	Silver	Unshielded	8 mm	32 mm	Insert Only Requires Shell	30	Automotive Industrial	Copper Alloy
Amphenol Aerospace Operations 97-32-6P	Insert Male Pins	DAP Diallyl Phthalate	Solder Cup	125 °C	-55 °C	N (Normal)	Silver	Unshielded	6 mm	32 mm	Insert Only Requires Shell	23	Automotive Industrial	Copper Alloy
Amphenol Aerospace Operations 97-32-8P	Insert Male Pins	DAP Diallyl Phthalate	Solder Cup	125 °C	-55 °C	N (Normal)	Silver	Unshielded	8 mm	32 mm	Insert Only Requires Shell	30	Automotive Industrial	Copper Alloy
