RT07148 Series

Catalog

RECEPTACLE, JAM NUT, 8 POSITION,

Part	Primary Material	Fastening Type	Number of Positions	Orientation	Note	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection Description	Ingress Protection IP Rating	Insert Material	Shell Finish	Features	Contact Size	Shell Material	Mounting Feature	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Housing Color	Contact Type	Contact Shape	Mounting Type	Type	Shielding
McGill Microwave Systems RT07148PNH	Metal	Bayonet Lock	8	N (Normal)	Contacts Not Included	14 mm	8 mm	Dust Tight Waterproof	IP67	Thermoplastic	Nickel	Cap (Cover)	16 S	Zinc Alloy	Bulkhead Front Side Nut	UL94 V-0	-40 °C	105 °C	Receptacle Housing	Silver	Crimp	Circular	Panel Mount	For Male Pins	Shielded

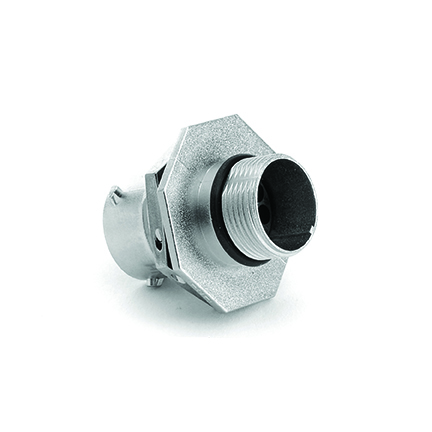

McGill Microwave Systems RT07148SNH03	Metal	Bayonet Lock	8	N (Normal)	Contacts Not Included	14 mm	8 mm	Dust Tight Waterproof	IP67	Thermoplastic	Nickel	Cap (Cover)	16 S	Zinc Alloy	Bulkhead Front Side Nut	UL94 V-0	-40 °C	125 °C	Receptacle Housing	Silver	Crimp	Circular	Panel Mount	For Female Sockets	Shielded
McGill Microwave Systems RT07148PNHEC03	Metal	Bayonet Lock	8	N (Normal)	Contacts Not Included	14 mm	8 mm	Dust Tight Waterproof	IP67	Thermoplastic	Nickel	Cap (Cover)	16 S	Zinc Alloy	Bulkhead Front Side Nut	UL94 V-0	-40 °C	125 °C	Receptacle Housing	Silver	Crimp	Circular	Panel Mount	For Male Pins	Shielded
McGill Microwave Systems RT07148PNHEC	Metal	Bayonet Lock	8	N (Normal)	Contacts Not Included	14 mm	8 mm	Dust Tight Waterproof	IP67	Thermoplastic	Nickel	Cap (Cover)	16 S	Zinc Alloy	Bulkhead Front Side Nut	UL94 V-0	-40 °C	105 °C	Receptacle Housing	Silver	Crimp	Circular	Panel Mount	For Male Pins	Shielded
