1711-60 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN BMA PLUG STR 50OHM EDGE MNT
| Part | Body Finish | Center Contact Plating | Mating Cycles | Body Material | Dielectric Material | Connector Style | Contact Termination | Number of Ports | Housing Color | Impedance | Connector Type | Frequency - Max | Mounting Type | Shield Termination | Center Contact Material | Fastening Type | Cable Group Diameter (Default) | Cable Group | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

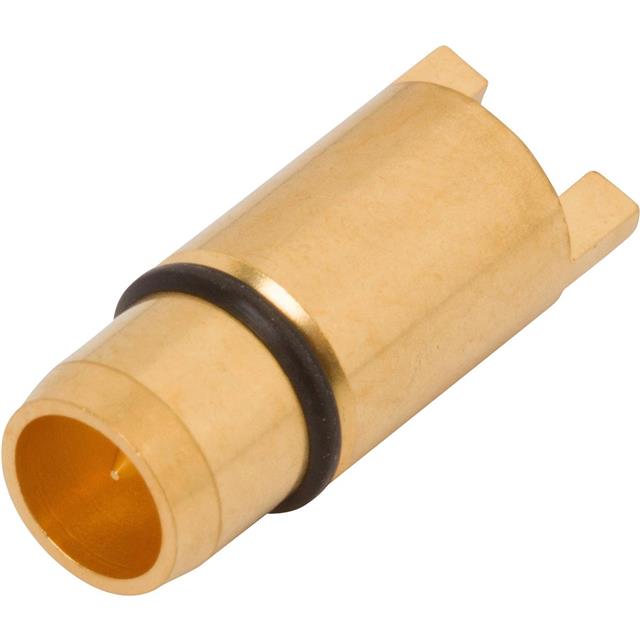

 McGill Microwave Systems | Gold | Gold | 5000 cycles | Stainless Steel | Polytetrafluoroethylene (PTFE) | BMA | Solder | 1 | Gold | 50 Ohm | Male Pin Plug | 22 GHz | Board Edge End Launch | Solder | Beryllium Copper | Snap-On | |||

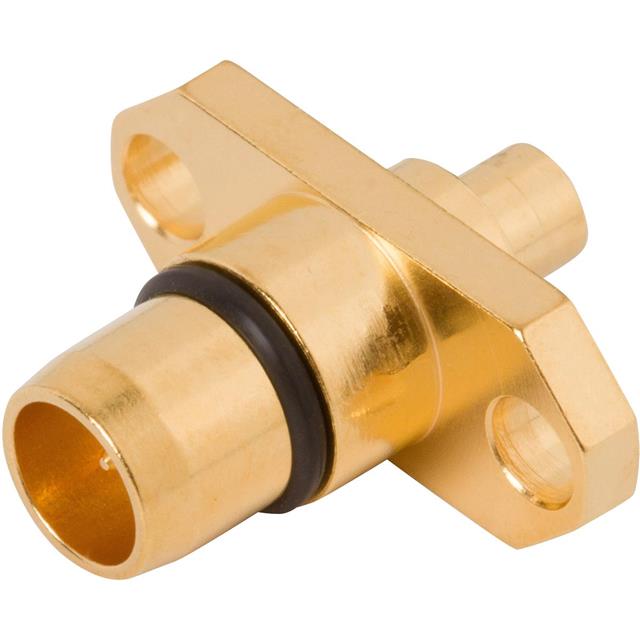

 McGill Microwave Systems | Gold | Gold | 5000 cycles | Stainless Steel | Polytetrafluoroethylene (PTFE) | BMA | Solder | 1 | Gold | 50 Ohm | Male Pin Plug | 22 GHz | Panel Mount | Solder | Beryllium Copper | Snap-On | 0.085 in | RG-405 | Flange |
