AD9709 Series

Catalog

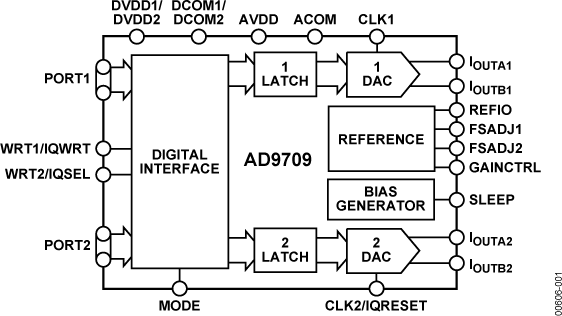

8-BIT, 125 MSPS DUAL TXDAC+ DIGITAL-TO-ANALOG CONVERTER

Part	Number of D/A Converters	Data Interface	Architecture	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	INL (LSB) Tolerance	DNL (LSB) Tolerance	Settling Time (Typical)	Mounting Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Number of Bits	Reference Type	Package Length	Package Name	Package Width	Differential Output	Package / Case	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)
Analog Devices Inc./Maxim Integrated AD9709ASTZ	2 count	Parallel	Current Source	-40 °C	85 °C	Current - Unbuffered	0.1 LSB	0.1 LSB	35 ns	Surface Mount	2.7 V	5.5 V	8 bits	External Internal	7 mm	48-LQFP	7 mm	Yes	48-LQFP	3 V	5.5 V
Analog Devices Inc./Maxim Integrated AD9709ASTZRL	2 count	Parallel	Current Source	-40 °C	85 °C	Current - Unbuffered	0.1 LSB	0.1 LSB	35 ns	Surface Mount	2.7 V	5.5 V	8 bits	External Internal	7 mm	48-LQFP	7 mm	Yes	48-LQFP	3 V	5.5 V
