EZ Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS TNC-FEMALE (JACK) BULKHEAD, CRIMP CONNECTOR, NON-SOLDER PIN, NO BRAID TRIM
| Part | Mounting Type | Shield Termination | Impedance | Number of Ports | Frequency - Max | Contact Termination | Mounting Feature | Connector Style | Connector Type | Cable Group | Center Contact Material | Fastening Type | Ingress Protection Description | Ingress Protection IP Rating | Housing Color | Center Contact Plating | Mating Cycles | Body Finish | Body Material | Insertion Loss | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Panel Mount | Crimp | 50 Ohm | 1 | 8 GHz | Push On | Bulkhead Front Side Nut | TNC | Female Socket Jack | LMR-240 | Beryllium Copper | Threaded | ||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 6000 MHz | Push On | N Type | Male Pin Plug | LMR-600 | Beryllium Bronze | Threaded | Dust Tight Waterproof | IP67 | Silver | ||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 6000 MHz | Solder | N Type | Male Pin Plug | LMR-600 | Beryllium Bronze | Threaded | Silver | ||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 3 GHz | Push On | UHF | Male Pin Plug | LMR-600 | Phosphor Bronze | Threaded | |||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 6000 MHz | Push On | SMA | Male Pin Plug | LMR-240 | Beryllium Copper | Threaded | Silver | ||||||||||||

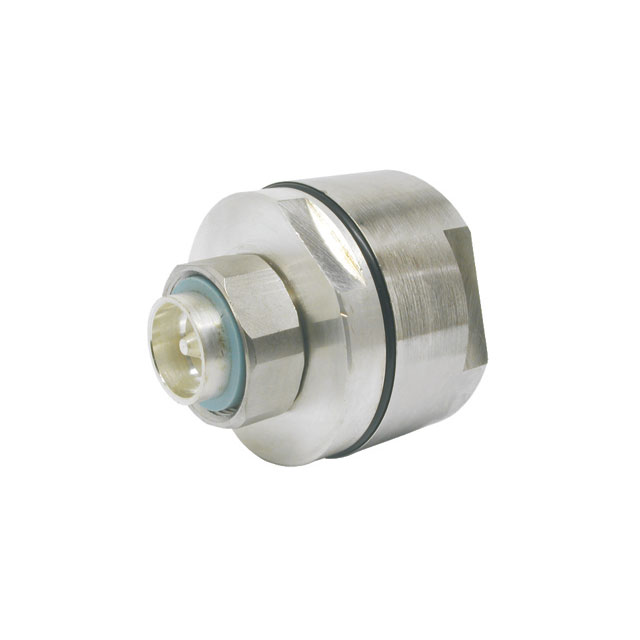

 McGill Microwave Systems | Free Hanging (In-Line) | Clamp | 50 Ohm | 1 | 3 GHz | Press-Fit | 7/16 DIN | Male Pin Plug | LMR-1700 | Brass | Threaded | Silver | Gold | 500 cycles | White Bronze | Brass | 0.1 dB | -40 °C | 85 °C | Polytetrafluoroethylene (PTFE) | ||||

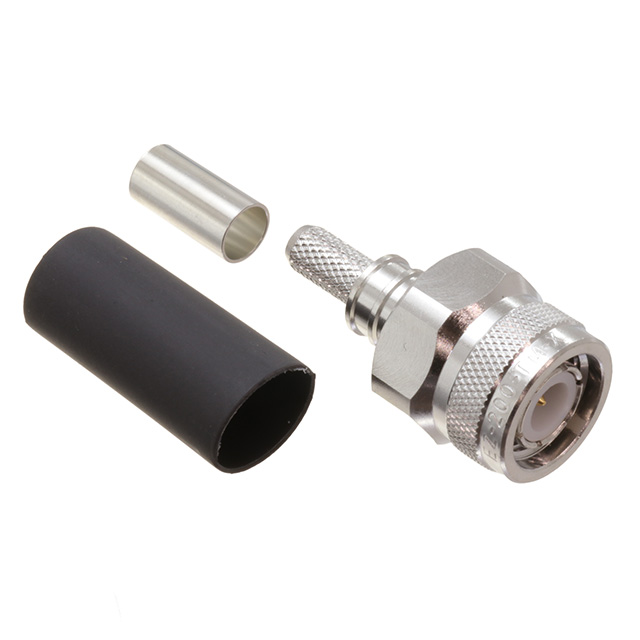

 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 6000 MHz | Push On | TNC | Male Pin Plug | LMR-200 | Beryllium Copper | Threaded | Silver | Gold | White Bronze | Brass | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | ||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 3 GHz | Press-Fit | N Type | Male Pin Plug | LMR-900 | Brass | Threaded | Silver | ||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 4 GHz | Push On | BNC | Male Pin Plug | LMR-400 | Copper | Bayonet Lock | Silver | ||||||||||||
 McGill Microwave Systems | Free Hanging (In-Line) | Crimp | 50 Ohm | 1 | 6000 MHz | Push On | TNC | Male Pin Plug | LMR-300 | Beryllium Copper | Threaded | Silver | Gold | 500 cycles | White Bronze | Brass | -55 °C | 125 °C | Polytetrafluoroethylene (PTFE) | 500 V |
