919-41 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF / COAXIAL CONNECTOR, MCX COAXIAL, RIGHT ANGLE PLUG, CRIMP, 75 OHM, BELDEN 4855R, BRASS
| Part | Center Contact Plating | Includes Total Count | Includes | Body Finish | Mating Cycles | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Body Material | Cable Group | Impedance | Center Contact Material | Shield Termination | Frequency - Max | Mounting Type | Contact Termination | Fastening Type | Connector Type | Connector Style | Number of Ports | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | 3 pcs | Connector End Cap Ferrule | Gold Nickel | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | Belden 4855R | 75 Ohm | Brass | Crimp | 12 Gbps | Free Hanging (In-Line) Right Angle | Solder | Snap-On | Male Pin Plug | MCX | 1 | |

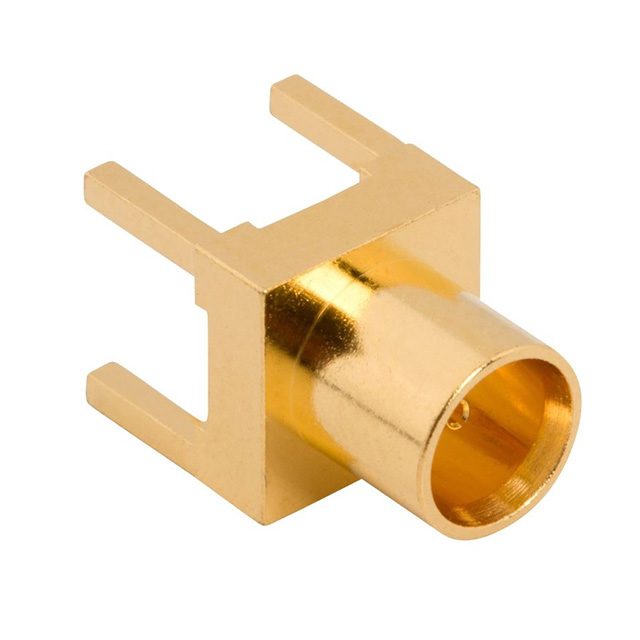

 McGill Microwave Systems | Gold | Gold | 500 cycles | -65 °C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 75 Ohm | Beryllium Copper | Solder | 12 Gbps | Through Hole | Solder | Snap-On | Female Socket Jack | MCX | 1 | Gold |
