RTS1BS14 Series

Catalog

CIRCULAR CONNECTOR, ECO MATE AQUARIUS SERIES, CABLE MOUNT RECEPTACLE, 7 CONTACTS

Part	Mounting Type	Material Flammability Rating	Contact Type	Type	Contact Size	Ingress Protection IP Rating	Ingress Protection Description	Shell Material	Connector Type	Number of Positions	Features	Shielding	Shell Size - Insert Width	Shell Size - Insert Length	Housing Color	Fastening Type	Orientation	Contact Shape	Insert Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Includes	Includes Total Count
McGill Microwave Systems RTS1BS14N7P03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Male Pins	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	7	Backshell	Unshielded	7 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS1BS14N12SHEC03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Female Sockets	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	12		Unshielded	12 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Connector Gasket O-Ring Seal	4 pcs

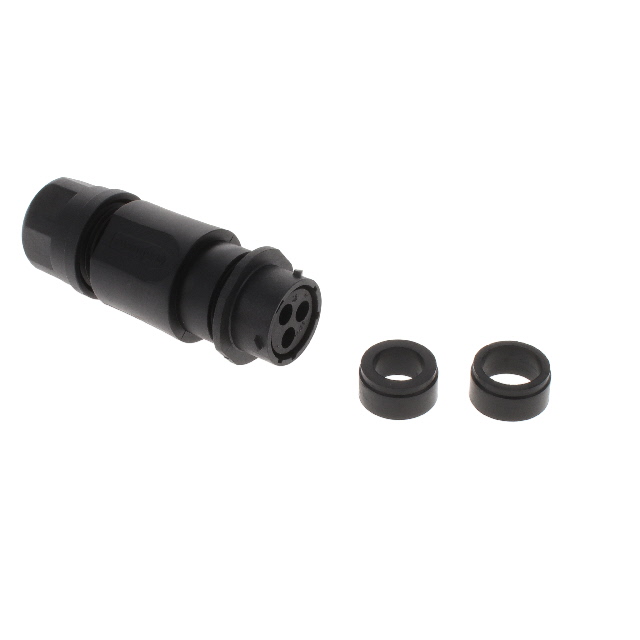

McGill Microwave Systems RTS1BS14N3S03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Female Sockets	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	3	Backshell	Unshielded	3 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs

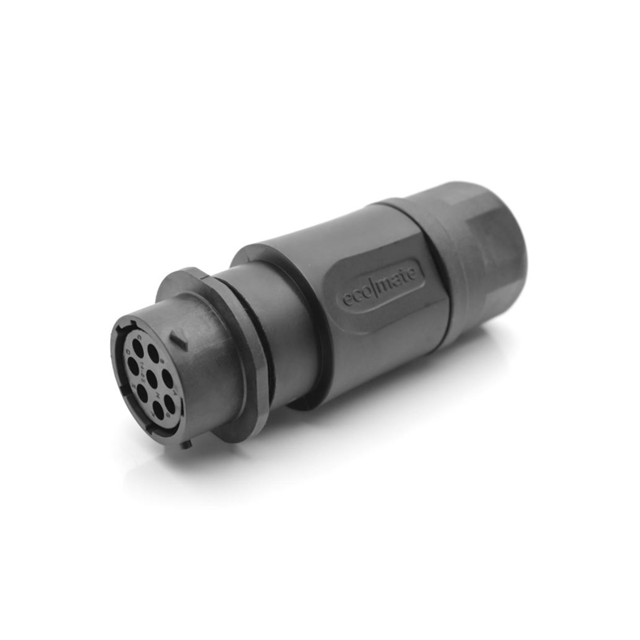

McGill Microwave Systems RTS1BS14N8S03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Female Sockets	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	8	Backshell	Unshielded	8 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs

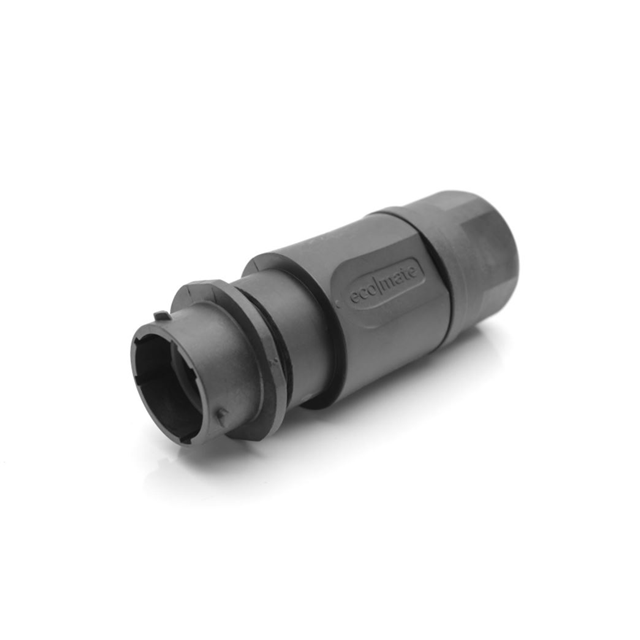

McGill Microwave Systems RTS1BS14N4P03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Male Pins	2.5 mm	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	4	Backshell	Unshielded	4 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs

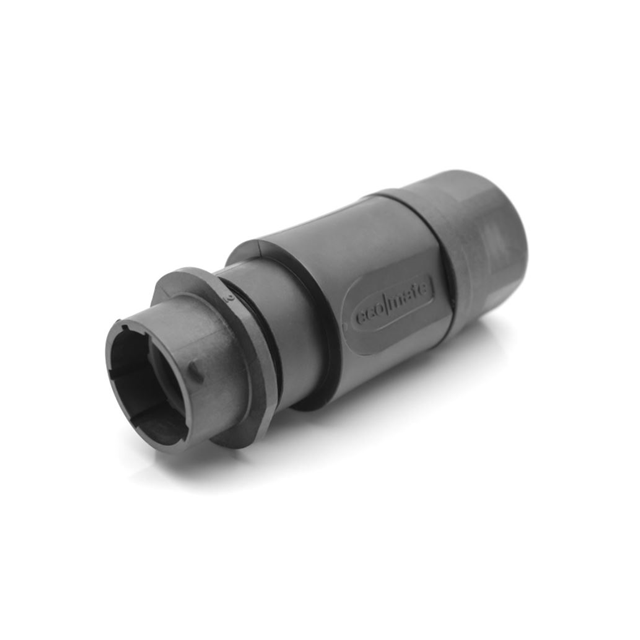

McGill Microwave Systems RTS1BS14N2P03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Male Pins	2.5 mm 16	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	4	Backshell	Unshielded	2 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
McGill Microwave Systems RTS1BS14N12S03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Female Sockets	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	12	Backshell	Unshielded	12 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs

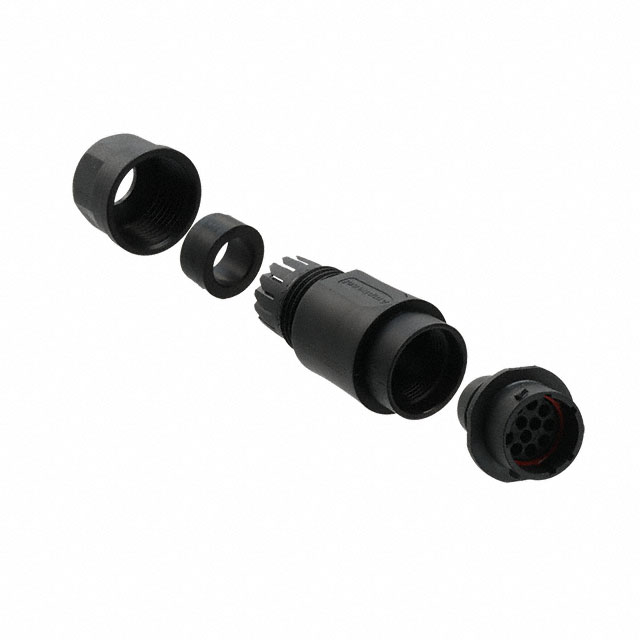

McGill Microwave Systems RTS1BS14N12P03	Free Hanging (In-Line)	UL94 V-0	Crimp	For Male Pins	16 S	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	Receptacle Housing	12	Backshell	Unshielded	12 mm	14 mm	Black	Bayonet Lock	N (Normal)	Circular	Thermoplastic	Contacts Not Included	125 °C	-40 °C	Backshell Clamp Ring Connector Nut O-Ring Seal	6 pcs
