2355825 Series

Catalog

MEZALOK, SOCKET, 114 P, 12 MM, 50 AU, LF

Part	Number of Rows	Height Above Board	Contact Finish	Mated Stacking Height	Mounting Type	Features	Number of Positions	Connector Type	Pitch	Contact Finish Thickness
TE Connectivity AMP Connectors 2355825-4	6	0.315 in	Gold	12 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin
TE Connectivity AMP Connectors 1-2355825-7	6	0.512 in	Gold	17 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin
TE Connectivity AMP Connectors 1-2355825-8	6	0.512 in	Gold	17 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin
TE Connectivity AMP Connectors 1-2355825-0	6	0.551 in	Gold	18 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin
TE Connectivity AMP Connectors 2355825-9	6	0.551 in	Gold	18 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin

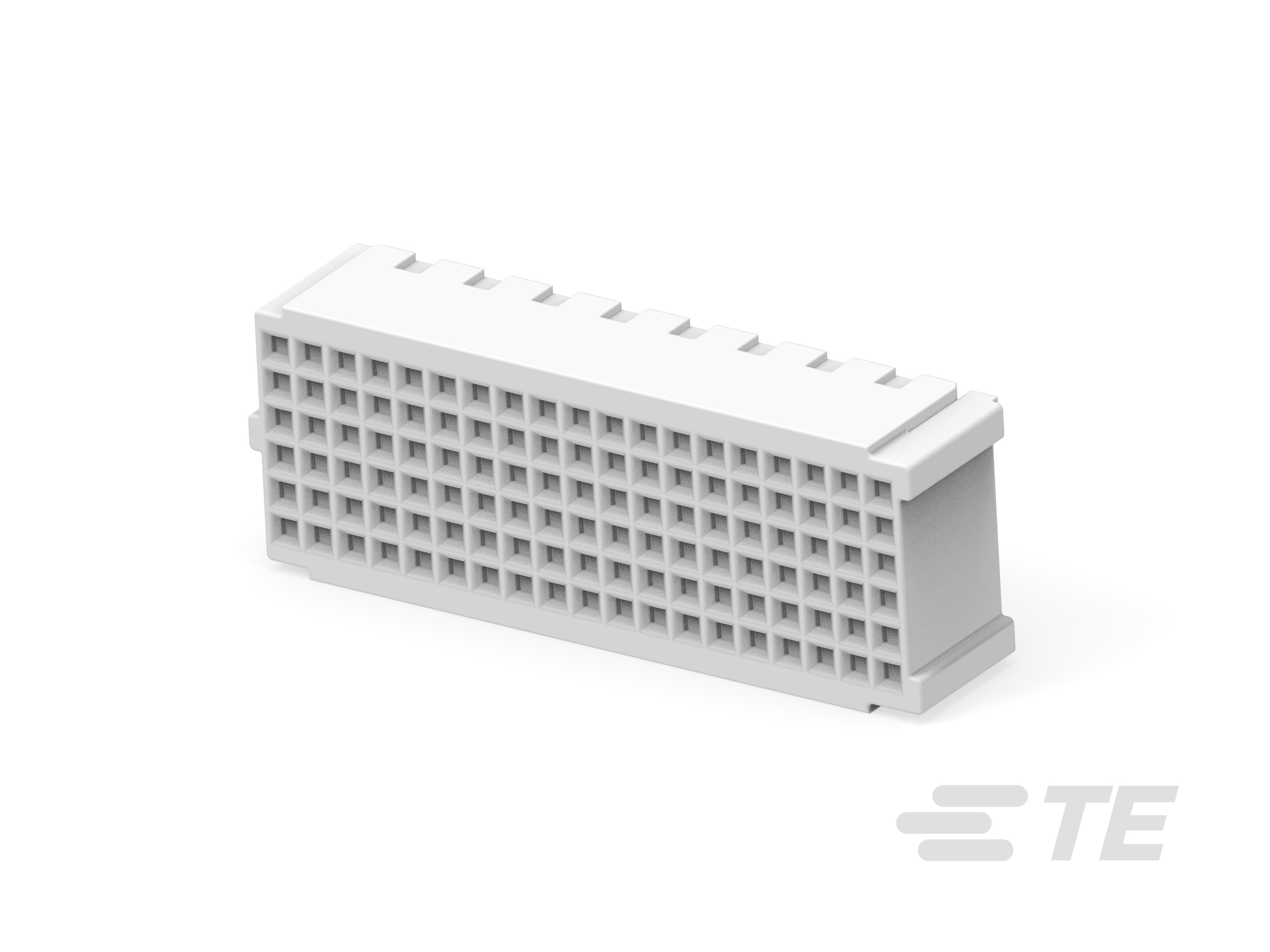

TE Connectivity AMP Connectors 2355825-2	6	0.236 in	Gold	10 mm	Surface Mount	Pick and Place	114	Array Female Sockets	0.05 in	50 µin
