3321-60 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

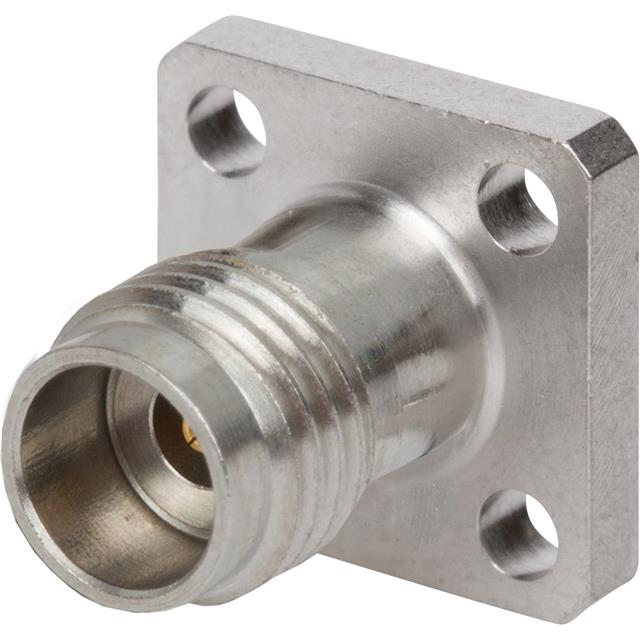

CONN 2.92MM 0HZ TO 67GHZ 50OHM ST FLANGE MOUNT PL GOLD OVER NICKEL TRAY
| Part | Center Contact Plating | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Mating Cycles | Impedance | Connector Type | Frequency - Max | Number of Ports | Contact Termination | Center Contact Material | Mounting Feature | Fastening Type | Housing Color | Connector Plug Diameter | Mounting Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Stainless Steel | -65 °C | 165 °C | Polyetherimide (PEI) | 500 cycles | 50 Ohm | Female Socket Jack | 67 GHz | 1 | Compression | Beryllium Copper | Flange | Threaded | Silver | 1.85 mm | Surface Mount | Screw |
 McGill Microwave Systems | Gold | Stainless Steel | -65 °C | 165 °C | Polyetherimide (PEI) | 500 cycles | 50 Ohm | Female Socket Jack | 67 GHz | 1 | Compression | Beryllium Copper | Threaded | Silver | 1.85 mm | Board Edge End Launch | Screw | |
 McGill Microwave Systems | Gold | Stainless Steel | -65 °C | 165 °C | Polyetherimide (PEI) | 500 cycles | 50 Ohm | Female Socket Jack | 67 GHz | 1 | Compression | Beryllium Copper | Flange | Threaded | Silver | 1.85 mm | Surface Mount | Screw |
