9LPRS355 Series

64-pin CK505 w/Fully Integrated Voltage Regulator + Integrated Series Resistor

Manufacturer: Renesas Electronics Corporation

Catalog

64-pin CK505 w/Fully Integrated Voltage Regulator + Integrated Series Resistor

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Input	Package Name	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	PLL	Output	Number of Circuits	Main Purpose	Package Width	Package Length
Renesas Electronics Corporation 9LPRS355BGLFT	2.5 V	3.3 V	Crystal	64-TFSOP 64-TSSOP	Surface Mount	70 °C	0 °C	No	Clock	1	Intel CPU PCI Express (PCIe)	6.1 mm	0.24 in

Catalog

64-pin CK505 w/Fully Integrated Voltage Regulator + Integrated Series Resistor

Description

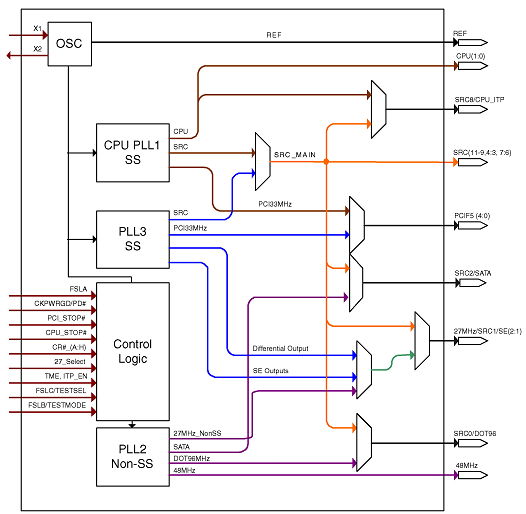

IDT9LPRS355 follows Intel CK505 Yellow Cover specification. This clock synthesizer provides a single chip solution for next generation P4 Intel processors and Intel chipsets. IDT9LPRS355 is driven with a 14.318MHz crystal. It also provides a tight ppm accuracy output for Serial ATA and PCI-Express support.
