Power Diode Discretes-Sonic i4-Pac
Description
AI
The SONIC series offers improved reverse recovery characteristics with hard turn-off capability and breakdown voltages up to 1800V.
Beta
⌘K

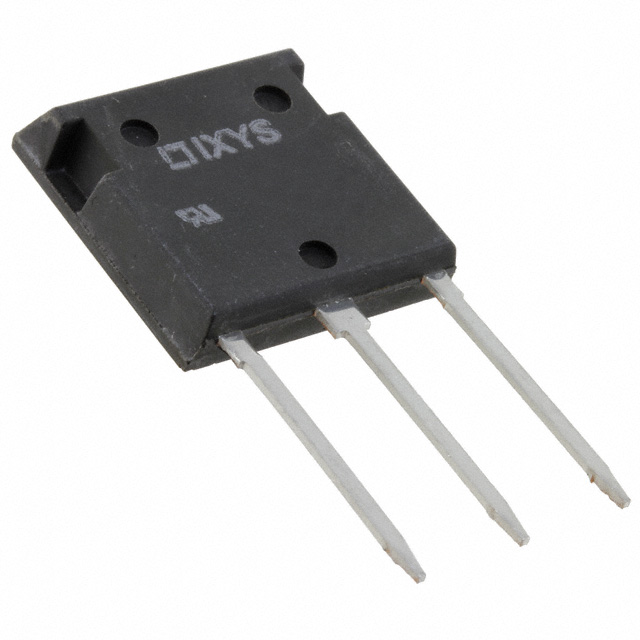

Power Diode Discretes-Sonic i4-Pac
Power Diode Discretes-Sonic i4-Pac
| Part | Diode Pair Count | Diode Configuration | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Voltage - Forward (Vf) (Max) | Package Name | Voltage - DC Reverse (Vr) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Current - Average Rectified (Io) (per Diode) | Mounting Type | Current - Reverse Leakage | Package / Case | Technology | Reverse Recovery Time (trr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1 pair | Series Connection | 500 ns | 200 mA | 2.04 V | i4-PAC™ | 1800 V | 150 °C | -55 °C | 60 A | Through Hole | 200 µA | i4-Pac™-3 | Standard | 230 ns |
