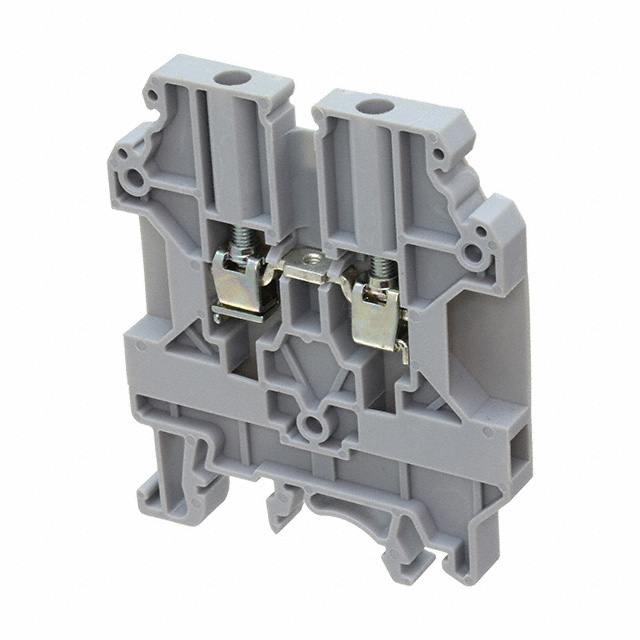

CHV4 Series
Manufacturer: Altech Corporation
Beta
⌘K
DIN TERM BLK, SCREW, HIGH VOLTAGE
| Part | Current - UL | Number of Positions | Number of Levels | Terminal Width | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Voltage - IEC | Color | Termination Style | Current - IEC | Voltage - UL | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Type | Stripping Length | Material - Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 35 A | 2 | 1 | 6 mm | 4 mm² | 0.2 mm² | 1.5 kV | Gray | Screw | 32 A | 1000 V | 22 AWG | 10 AWG | Feed Through | ||
Altech Corporation | 35 A | 2 | 1 | 6 mm | 4 mm² | 0.2 mm² | 1000 V | Gray | Screw | 32 A | 1000 V | 22 AWG | 10 AWG | Feed Through | 12 mm | Nylon 6/6 PA66 Polyamide |
