ADG824 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

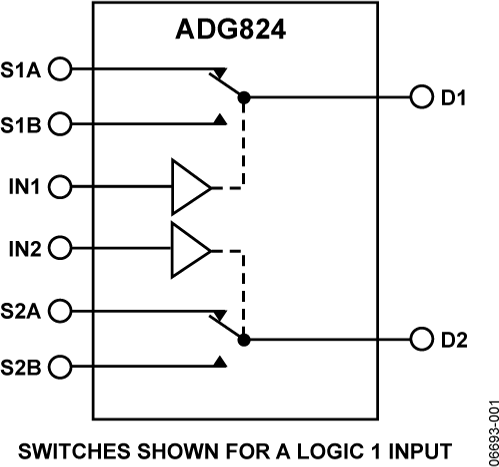

0.5 Ω CMOS 1.65 V TO 3.6 V DUAL SPDT/2:1 MUX IN MINI LFCSP PACKAGE
| Part | Mounting Type | Operating Temperature (Max) | Operating Temperature (Min) | Package Name | Package Length | Package Width | Multiplexer Inputs | Demultiplexer Outputs | Channel-to-Channel Matching (ΔRon) | -3db Bandwidth | Package / Case | Switch Circuit Type | On-State Resistance (Max) | Crosstalk | Channel Capacitance (CS(off)) | Channel Capacitance (CD(off)) | Current - Leakage (Typical) | Switch Time Toff (Max) | Switch Time Ton (Max) | Voltage - Supply, Single (V+) (Maximum) | Voltage - Supply, Single (V+) (Minimum) | Number of Circuits | Charge Injection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | 85 °C | -40 °C | 10-LFCSP-UQ | 1.6 mm | 1.3 mm | 2 | 1 | 3 mOhm | 90 MHz | 10-UFQFN CSP | SPDT | 800 mOhms | -90 dB | 25 pF | 25 pF | 200 pA | 7.7 ns | 9.5 ns | 3.6 V | 1.65 V | 2 | 27 pC |
