JBXEA0G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Connector Type	Termination	Color	Primary Material	Contact Finish - Mating	Applications	Insert Material	Shell Material	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Contact Finish Thickness - Mating	Number of Positions	Ingress Protection	Mounting Type	Shielding	Material Flammability Rating	Current Rating	Fastening Type	Shell Finish	Mounting Feature
Amphenol Aerospace Operations JBXEA0G04FQSDS	Female Sockets Receptacle	Solder	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	660 V	19.7 µin	4	IP40	Panel Mount Right Angle Through Hole	Shielded	UL94 V-0	7 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G03FCSDS	Female Sockets Receptacle	Crimp	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	600 V	19.7 µin	3	IP40	Panel Mount	Shielded	UL94 V-0	8 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G07FSSDP	Female Sockets Receptacle	Solder Cup	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	320 V	19.7 µin	7	IP40	Panel Mount	Shielded	UL94 V-0	2.5 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G03FSSDS	Female Sockets Receptacle	Solder Cup	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	600 V	19.7 µin	3	IP40	Panel Mount	Shielded	UL94 V-0	8 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G05FSSDS	Female Sockets Receptacle	Solder Cup	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	400 V	19.7 µin	5	IP40	Panel Mount	Shielded	UL94 V-0	6.5 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut

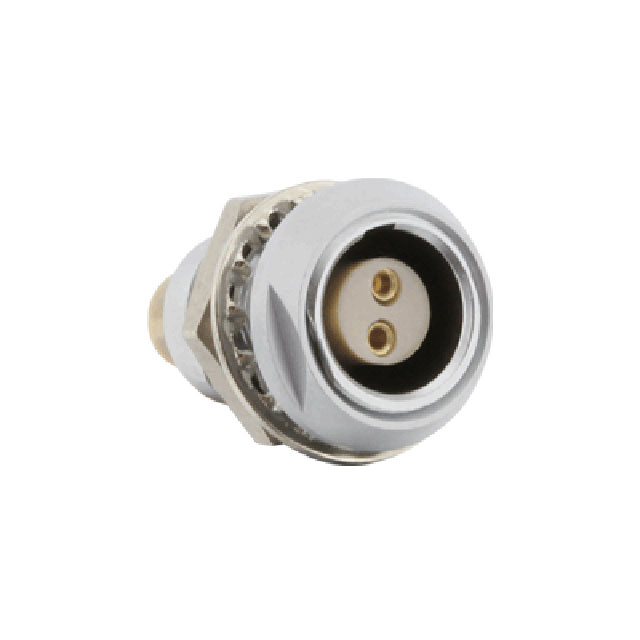

Amphenol Aerospace Operations JBXEA0G02FPSDS	Female Sockets Receptacle	Solder	Silver	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	660 V	19.7 µin	2	IP40	Panel Mount Through Hole	Shielded	UL94 V-0	10 A	Push-Pull	Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G05FSNDS	Female Sockets Receptacle	Solder Cup	Black	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	400 V	19.7 µin	5	IP40	Panel Mount	Shielded	UL94 V-0	6.5 A	Push-Pull	Black Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G04FPNDS	Female Sockets Receptacle	Solder	Black	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	660 V	19.7 µin	4	IP40	Panel Mount Through Hole	Shielded	UL94 V-0	7 A	Push-Pull	Black Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G05FPNDS	Female Sockets Receptacle	Solder	Black	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	400 V	19.7 µin	5	IP40	Panel Mount Through Hole	Shielded	UL94 V-0	6.5 A	Push-Pull	Black Chrome Nickel	Bulkhead Front or Rear Side Nut
Amphenol Aerospace Operations JBXEA0G04FSNDS	Female Sockets Receptacle	Solder Cup	Black	Metal	Gold	Industrial Instrumentation Medical Telecommunications	PEEK Polyetheretherketone	Brass	G	125 °C	-40 °C	660 V	19.7 µin	4	IP40	Panel Mount	Shielded	UL94 V-0	7 A	Push-Pull	Black Chrome Nickel	Bulkhead Front or Rear Side Nut
