SF1611 Series

Catalog

2.4MM MALE SOLDERLESS PCB COMPRE

Part	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Mounting Feature	Connector Plug Diameter	Connector Style	Fastening Type	Impedance	Features	Connector Type	Center Contact Material	Mounting Type	Contact Termination	Frequency - Max	Housing Color	Shield Termination	Dielectric Material	Number of Ports	Cable Group Diameter (Default)	Cable Group	Cable Group Size	Insertion Loss	Includes	Includes Total Count

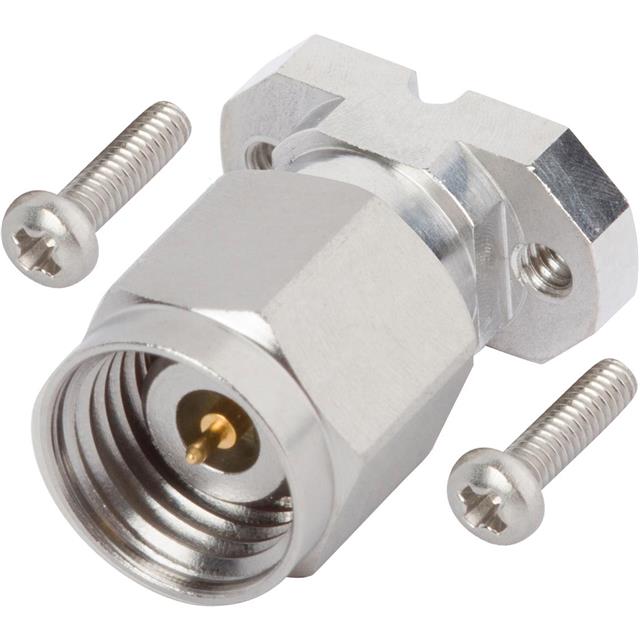

McGill Microwave Systems SF1611-60021-1S	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	Flange	2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm	Mounting Hardware	Male Pin Plug	Beryllium Copper	Surface Mount	Compression	50 GHz	Silver	Screw

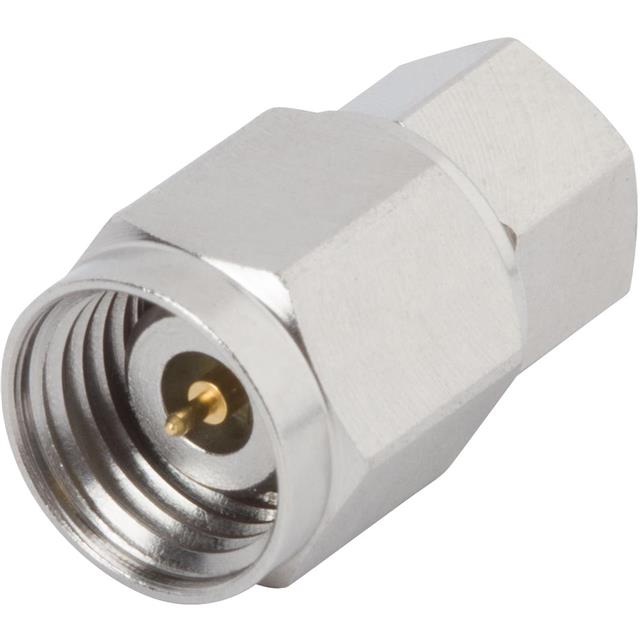

McGill Microwave Systems SF1611-60003	Stainless Steel			Gold			2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm		Male Pin Plug	Beryllium Copper	Free Hanging (In-Line)		50 GHz	Silver	Clamp	Polyetherimide (PEI)	1	0.085 in	RG-405
McGill Microwave Systems SF1611-60001	Stainless Steel			Gold			2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm		Male Pin Plug	Beryllium Copper	Free Hanging (In-Line)		50 GHz	Silver	Clamp	Polyetherimide (PEI)	1		Flexible	0.047 "
McGill Microwave Systems SF1611-60021-2S	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	Flange	2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm	Mounting Hardware	Male Pin Plug	Beryllium Copper	Surface Mount	Compression	50 GHz	Silver	Screw
McGill Microwave Systems SF1611-60018	Stainless Steel	-65 °C	165 °C	Gold	500 cycles		2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm	Mounting Hardware	Male Pin Plug	Beryllium Copper	Board Edge End Launch	Compression	50 GHz	Silver	Screw		1				0.283 dB	Connector Screws	3 pcs

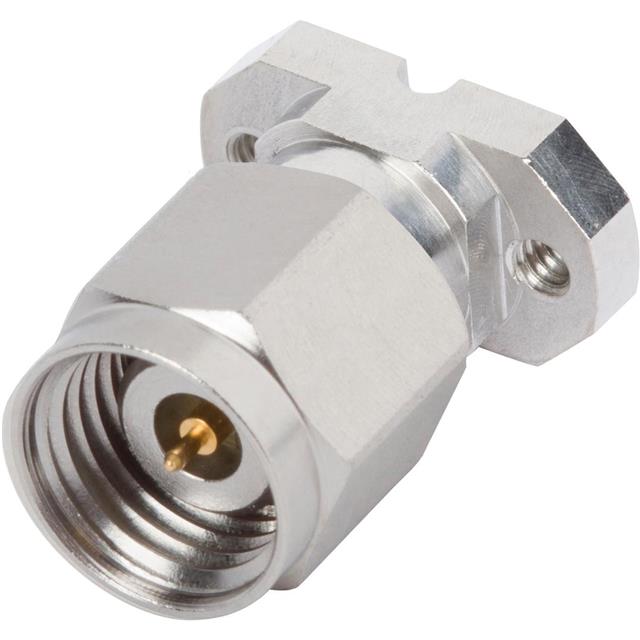

McGill Microwave Systems SF1611-60021	Stainless Steel	-65 °C	165 °C	Gold	500 cycles	Flange	2.4 mm	APC-2.4 OS-50	Threaded	50 Ohm		Male Pin Plug	Beryllium Copper	Surface Mount	Compression	50 GHz	Silver	Screw
